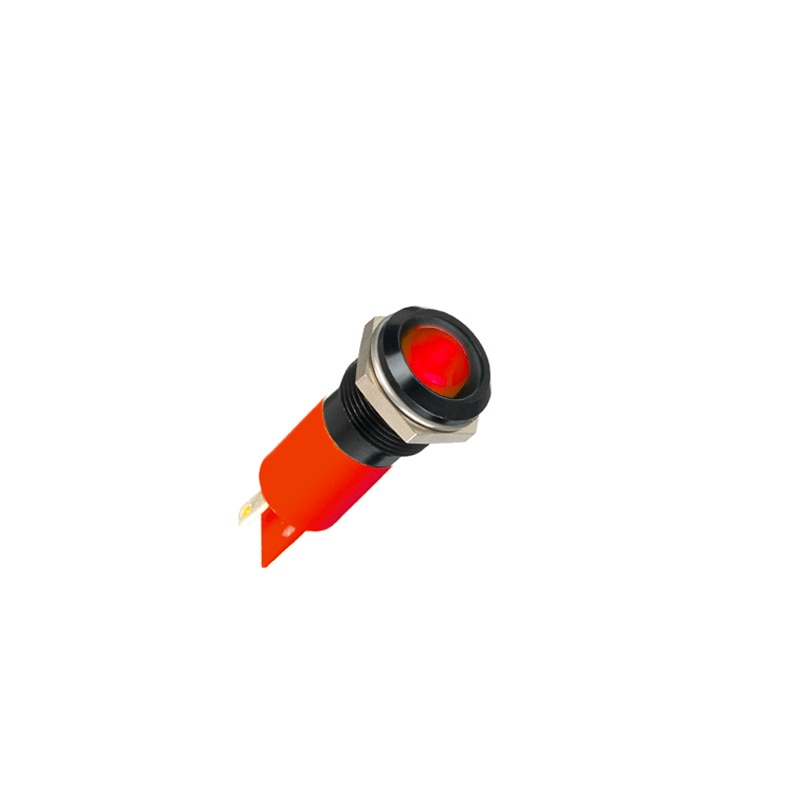

Q12P1BXXR110E
The Q12P1BXXR110E LED Indicator is a high-quality product that is designed to provide reliable and efficient illumination in various applications. With its 12 mm Mounting Hole, it can easily fit into different types of equipment. The Prominent Bezel Style adds a sleek and modern touch to any device. Equipped with Solder Lug Fastons 28 x 08 Terminals, it ensures secure and stable connections. The Black Bezel Finish gives it a sophisticated look. With its Fixed LightKK Type Of Illumination, it provides a steady and consistent light output. The Red LED Color adds a vibrant and eye-catching element. Operating at 110 VAC Voltage, it offers a powerful performance. Its IP67 Sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Voltage: 110 VAC
- Type Of Illumination: Fixed Light
- Mounting Hole: Ø12 mm
- Terminals: Solder Lug/ Fastons(2.8 x 0.8)
- Led Color: Red
- Bezel Style: Prominent
- Series: Q
- Sealing: IP67
- Bezel Finish: Black
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
