FRAA1U01A1A

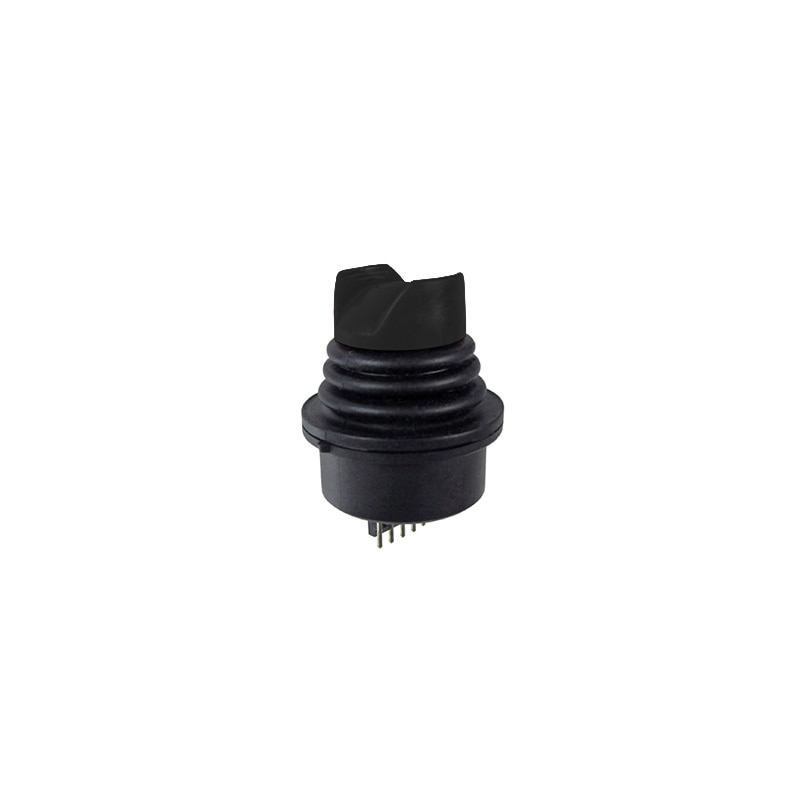

The FRAA1U01A1A Joystick, also known as the Handle, is a versatile input device suitable for various applications. It features a comfortable grip, allowing users to navigate with ease. With its drop-in and rear mount mounting options, it can be easily integrated into any setup. The joystick's termination is made with high-quality 22 AWG PTFE wire, ensuring reliable connectivity. For output options, it offers a wide range of choices, including 025, 25, and 475 VDC, making it compatible with different systems.
Key Features
- Output Options: 0.25/2.5/4.75 VDC
- Termination: 22 AWG 25 cm PTFE
- Power: Single
- Operation: Single Axis
- Mounting: Drop-in and Rear Mount
- Handle Color: Black
Specifications
Distinctive Features:
- Forward-neutral-reverse operation
- ON-OFF-ON analog output
- Choice of 3 actuator colors3 million lifecycles
- Panel sealed up to IP67
General Specifications:
- Non-contact Hall effect technology
- Three position, ON-OFF-ON analog output
- 3 million lifecycles
- Submersible to 1m (3.28ft) per IP67
- Choice of handle colors
- Redundant outputs available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: Submersible to 1m per IP684
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Supply Voltage Range: 5.00V ± 0.01V
- Reverse Polarity Max: 10V
- Overvoltage Max: 20V
- Return to Center Voltage Tolerance (POS2): 2.50V ±0.50V
- Output Voltage Tolerance at Full Travel/Detent Position(POS1, POS3): ±0.25V
