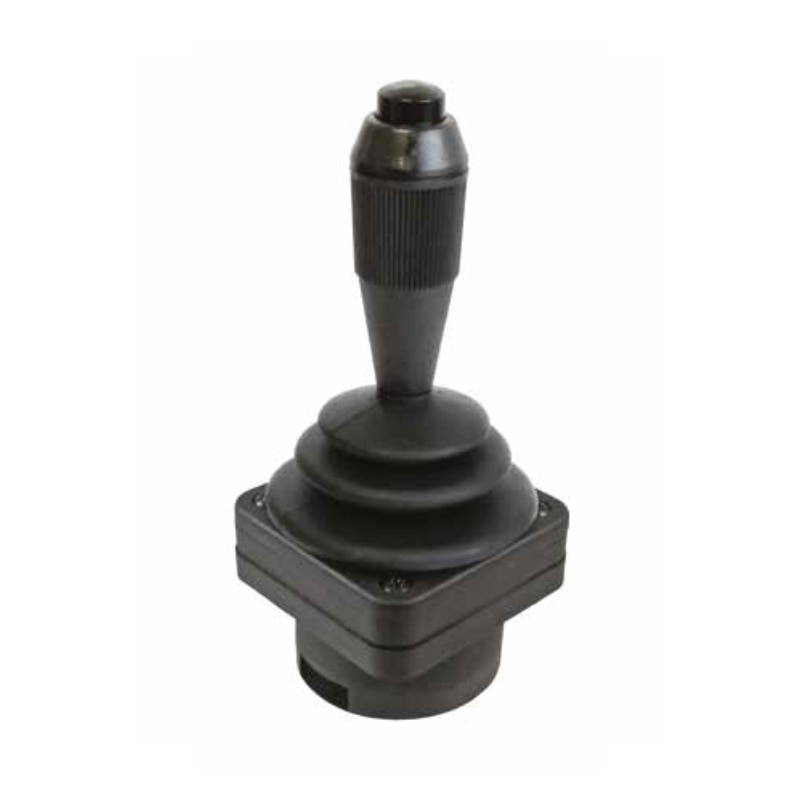

HF27P11
Introducing the HF27P11 Joystick, a versatile and reliable control solution for your applications. With its ergonomic Handle design, it ensures comfortable and precise operation. The integrated Pushbutton allows for easy selection and activation of functions. The IP67 sealing provides excellent protection against dust and water, making it suitable for use in various environments. The Limiter feature adds an extra layer of control, allowing you to set limits and prevent overextension. With its convenient Drop-in Mounting, installation is a breeze. Choose from a range of Output Options, from 05V to 45V, to meet your specific requirements. Upgrade your control experience with the HF27P11 Joystick!
Specifications
Distinctive Features:
- One, two or three axis
- Analog outputs
- CAN bus J1939 and CANopen options
- USB 2.0 HID interface options
- Connectorized housing
General Specifications:
- Break Out Force: 1.3N (0.3lbf)
- Operating Force: 2.8N (0.63lbf)
- Maximum Applied Force: 200N (45.00lbf)
- Mechanical Angle of Movement: 36º (18º from center)
- Expected Life: 5 million
- Package Size: 5.75” x 4.50” x 3.25”
- Lever Action: Single spring, omnidirectional
Environmental Specifications:
- Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Sealing (IP): Up to IP68*
- EMC Immunity Level (V/M): EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
- Output linearity: ±200mV
- Dual output interlinearity (X/Y): ±400mV
- Dual output interlinearity (Z): ±600mV
Electrical Specifications:
- Sensor: Hall effect, single or dual
- Supply Voltage Range: 5VDC±0.01VDC
- Supply Current: 40mA typical / 50mA max (3 axis)
- Reverse Polarity Max: -10VDC
- Transient Overvoltage Max: 16VDC
- Ratiometric Output Voltage: See options
- Output Current: 8mA
- Output Load: 1K ohm min
- Output Impedance: 2Ω
