HF22S10

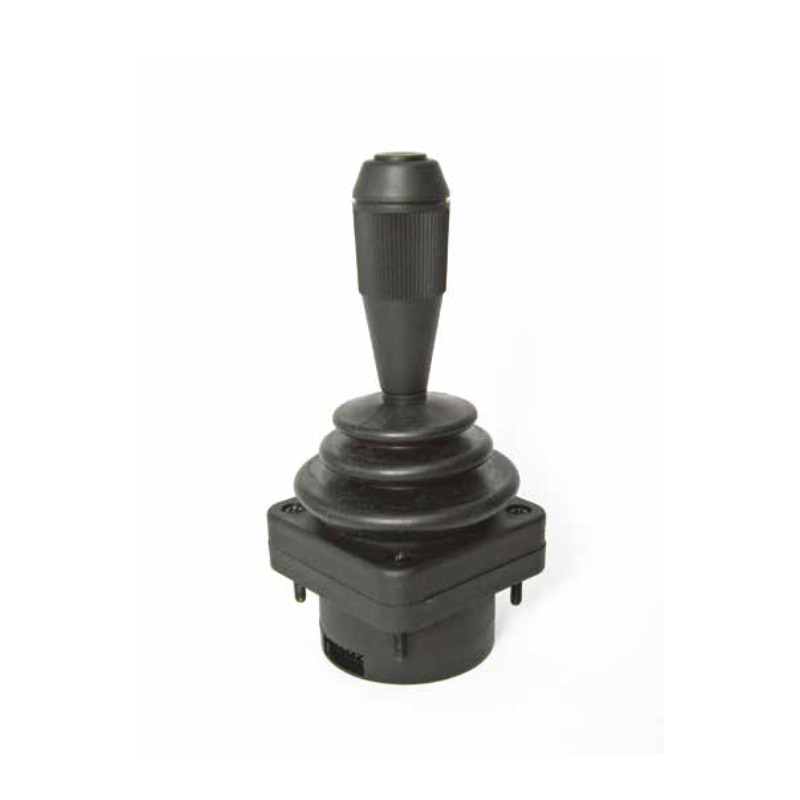

The HF22S10 Joystick, also known as the HF22S10 Handle, is a versatile input device designed for precision control. With 1 pushbutton and 2 axis, it allows users to navigate and interact with their devices effortlessly. The HF22S10 also features a Limiter, or Limiteur, which provides a square boundary for movement, ensuring accurate and controlled input. Its convenient Drop-in mounting allows for easy installation in various applications. Additionally, the HF22S10 offers flexible Output Options, providing both 0V and 5V outputs to suit different system requirements.
Specifications
Distinctive Features:
- One, two or three axis
- Analog outputs
- CAN bus J1939 and CANopen options
- USB 2.0 HID interface options
- Connectorized housing
General Specifications:
- Break Out Force: 1.3N (0.3lbf)
- Operating Force: 2.8N (0.63lbf)
- Maximum Applied Force: 200N (45.00lbf)
- Mechanical Angle of Movement: 36º (18º from center)
- Expected Life: 5 million
- Package Size: 5.75” x 4.50” x 3.25”
- Lever Action: Single spring, omnidirectional
Environmental Specifications:
- Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Sealing (IP): Up to IP68*
- EMC Immunity Level (V/M): EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
- Output linearity: ±200mV
- Dual output interlinearity (X/Y): ±400mV
- Dual output interlinearity (Z): ±600mV
Electrical Specifications:
- Sensor: Hall effect, single or dual
- Supply Voltage Range: 5VDC±0.01VDC
- Supply Current: 40mA typical / 50mA max (3 axis)
- Reverse Polarity Max: -10VDC
- Transient Overvoltage Max: 16VDC
- Ratiometric Output Voltage: See options
- Output Current: 8mA
- Output Load: 1K ohm min
- Output Impedance: 2Ω
