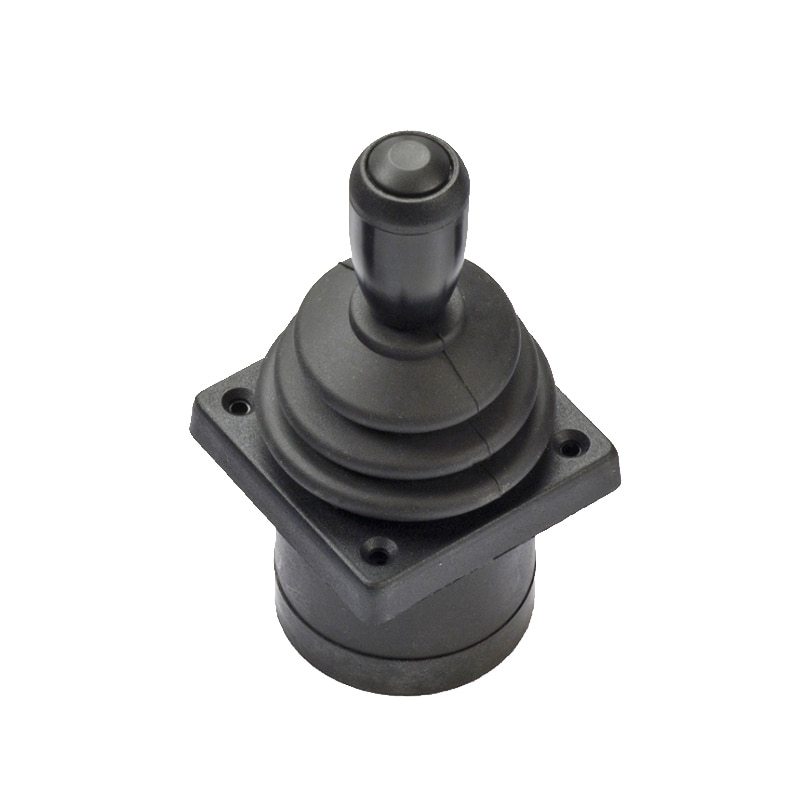

9SA50CJ6500
Introducing the 9SA50CJ6500 Joystick, the ultimate control device for your gaming experience. With its sleek design and ergonomic handle, this joystick offers maximum comfort and precision. The Gain feature allows you to adjust sensitivity, giving you the perfect control over your movements. The Limiter function ensures that your actions stay within the desired range, preventing any accidental oversteering. The durable and stylish Bezel provides a seamless integration into your gaming setup, while the Boot keeps your joystick protected from dust and debris. Upgrade your gaming experience with the 9SA50CJ6500 Joystick today!
Key Features
- Bezel: Square(Drop in mounting)
- Handle: Pushbutton tactile
- Limiter: Cross
- Modifier: None
- Gain: 100% (±50%)
- Sensing: Standard
- Decoding: Single Decode
- Series: 9
- Boot: Standard
Specifications
Distinctive Features:
- Propotional analog output
- One or two axis
- Infinite resolution
- Low profile design with multiple handle options
General Specifications:
- Progressive switching
- One or two axis
- Signal mixing options
- 5 - 15V operation
- Optional at center and internal fault detection
- Dual redundant outputs
- Infinite resolutionInductive sensing
Environmental Specifications:
- Above Panel Seal: IP65
- Temperature Range: -20°C to +55°C (-4°F to +131°F)
- Operating Lever Deflection: ±18%
Electrical Specifications:
- Supply Voltage: 4.75V Min to 15V Max
- Signal Swing: ±10% of VCC to ±50% of VCC
- Output Signal Tolerance: ±10% of Output
- Output at Center: ±1%
- Output Impedance: 1.8k ±1%
- Signal Ripple: <1% of Output
- Supply Current: Typically 10mA
- ESD Immunity: >12KV – Correctly Installed
- RFI Rejection: >20V/m – Bare Joystick
- RFI Rejection: >40V/m – Correctly Installed
- Preferred Load: >10K
