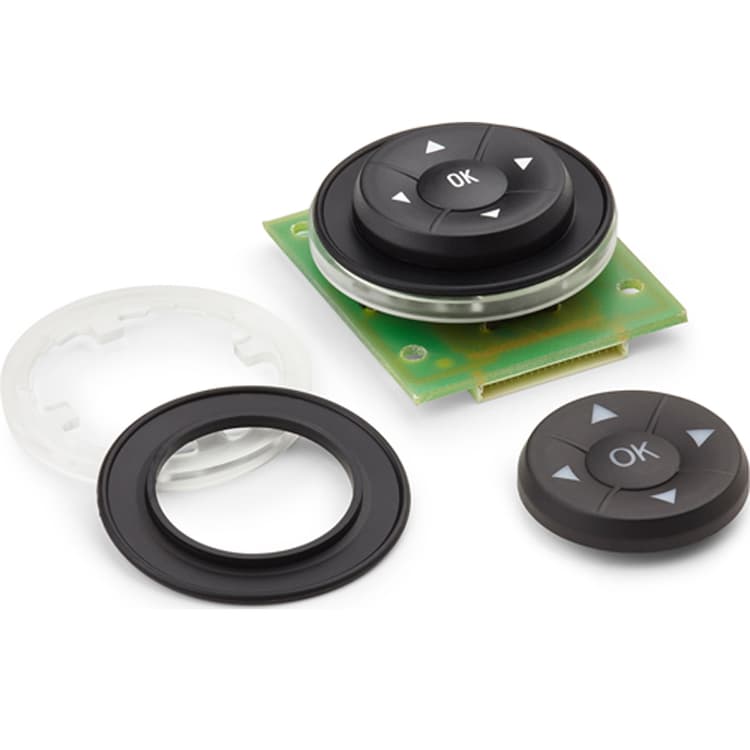

Controlmec™ - 1ZW (sealed)

Controlmec™ is a round five position integrated PCB switch solution to control a unit, navigate in a display or operate auxiliary equipment. 1ZW is Controlmec™ with panel sealing.
The solution is available as a module as well as single parts for own PCB mounting. Illuminated version is available with a frosted white cap that is painted black and legends are laser etched. We recommend through-hole version due to increased accuracy during mounting of the switches.
Controlmec™ 1ZW solution is mounted on Multimec™ 5 series..


Main features

  • Ø29.5 mm
  • Standard cap colors: grey, white, black and frosted white
  • Standard legend options available
Product detail
Product detail

Key Features

• Ø29.5 mm • h=12.3 mm • Standard colors: -solid colors: blue, green, grey, yellow, white, red & black -transparent color: frosted white • Two standard print options: pad print or hard paint laser etched • Panel cut-out: Ø30.3 mm
