XDRT

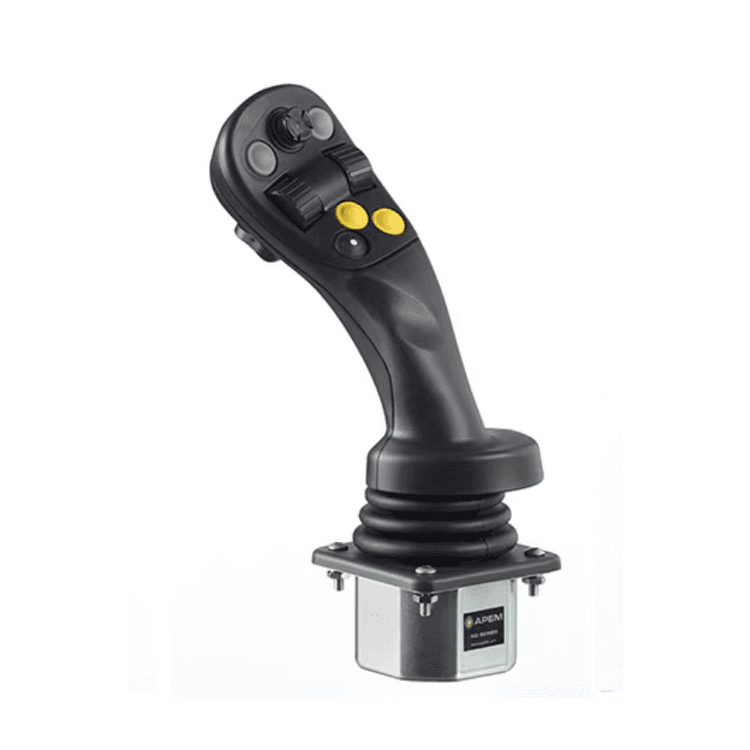

The XD Series joystick, featuring Hall effect technology, is a sophisticated multi-axis Hand Grip controller crafted for challenging vehicle applications. This compact yet robust joystick controller is engineered to withstand heavy-duty use in off-highway vehicles and machinery, offering an impressive lifespan of up to 10 million operations.

The XD Series joystick stands out with its minimal below-panel depth of just 60 mm, yet it is capable of resisting horizontal loads up to 400 lbf thanks to its sturdy all-metal construction. The joystick handle of the XD series boasts a uni-body construction with modular inserts that enhance design flexibility. These inserts include an index trigger switch, an operator presence paddle, and a customizable faceplate, ensuring IP67 environmental sealing above the panel, which guards against the ingress of dust and liquids.

Main features of the XD Series Hall Effect joystick:

• SIL 2 compatibility with redundant Hall sensors
• High axial load resistance (1780 N - 400 lbf)
• Shallow mounting depth of less than 60 mm (2.36 inches)
• CAN bus joystick functionality with SAE CAN bus J1939-71 and CAN Open LSS
• Joystick hall sensor rated for 10 million lifecycles
