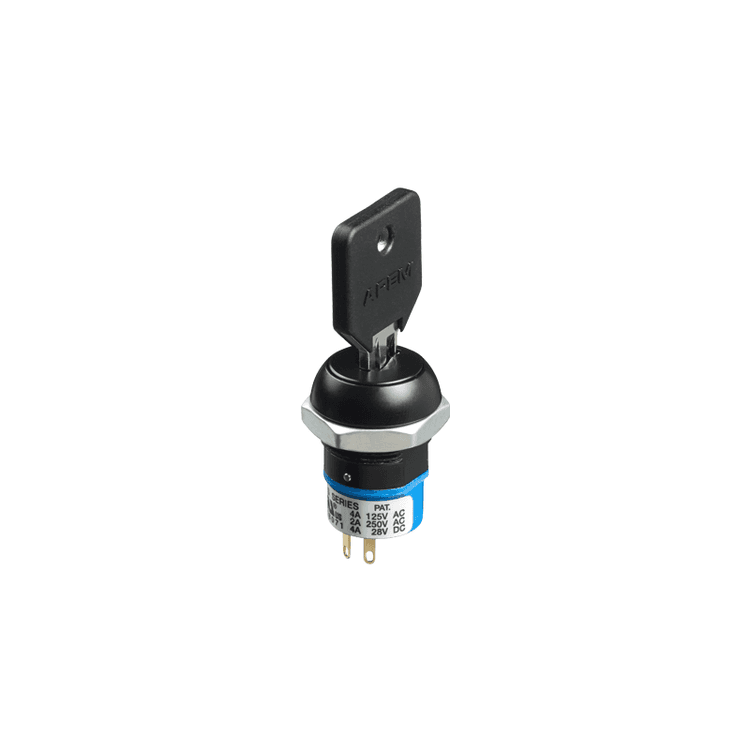

LK6PGB126-M4
Single and double pole models for panel mount with solder lug terminals. Indexing is 45 or 90 degrees and two standard single-bitted brass keys are supplied. UL is available on all models with a 4 amp 125 VAC rating. Custom assemblies and wire harnesses are available.
Specifications
General Specifications:
- Mechanical life : 6000 cycles at full load.
- Operating temperature range : -30°C to +85°C
Environmental Specifications:
- Barrel shutter option
Electrical Specifications:
- Contact rating : 4A at 125 VAC or 28VDC, 2A at 250 VAC
- Contact resistance : ≤ 10 mΩ
- Insulation resistance : ≥109 MΩ
- Dielectric strength : 1000 V RMS minimum at sea level
- Electrical life : 6000 cycles at full load
Materials:
- Lock housing : Zinc alloy die casted, nickel plated
- Cylinder : 4 disc tumbler, zinc alloy die casted, nickel plated
- Keys : 2 single bitted keys, brass nickel plated
- Contacts : Gold plated copper alloy
- Body : Glass filled polyester
