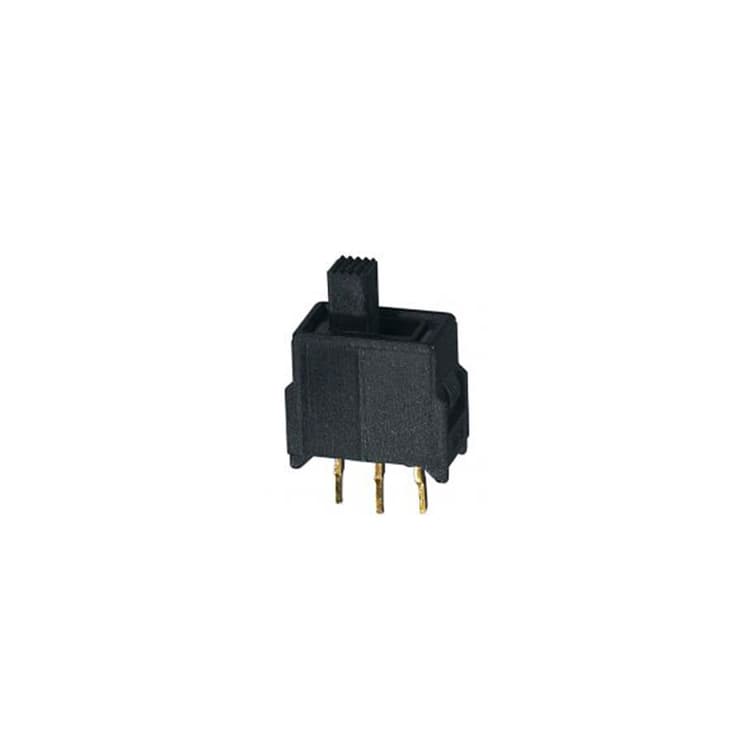

TG36Y090000
Tiny slide switches, with single pole with gold or silver plated contacts.
Key Features
- Terminals: Straight PC, bracket mounting
- Model: Standard
- Series: TG
- Contact and terminal materials: Contact brass, gold plated (127 µ gold) + tin plated term.
- Number of poles: Single Pole
- Electrical functions: ON - ON
- Actuators: High (standard)
Specifications
General Specifications:
- Travel : 2.60 mm (.102)
- Cleaning : solvents or water + detergent
- Wave soldering : 260 °C - 5 sec. max.
Environmental Specifications:
- Operating temperature : -30 °C to +85 °C
Electrical Specifications:
- Current/voltage rating with resistive load :- Gold plated contacts : 0,4 VA 20 V max. AC or DC.- Silver plated contacts : 0,5 A 48 V max. AC or DC
- Contact resistance : 20 mΩ max.
- Insulation resistance : 1,000 MΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals
- Electrical life at full load : 2 position switches : 60,000 cycles3 position switches : 30,000 cycles
Materials:
- Case : flame retardant thermoplastic
- Actuator : thermoplastic
- Ground plate and bracket : brass, tin plated
- Rubber seal : silicone, transparent
- Terminal seal : époxy
- Contacts and terminals : 0 Brass, gold plated (std)1 Brass, silver plated3 Brass, gold plated (1.27 µ gold)8 Contact brass, gold plated + tin plated terminals9 Contact brass, gold plated (1.27 µ gold) + tin plated term.
