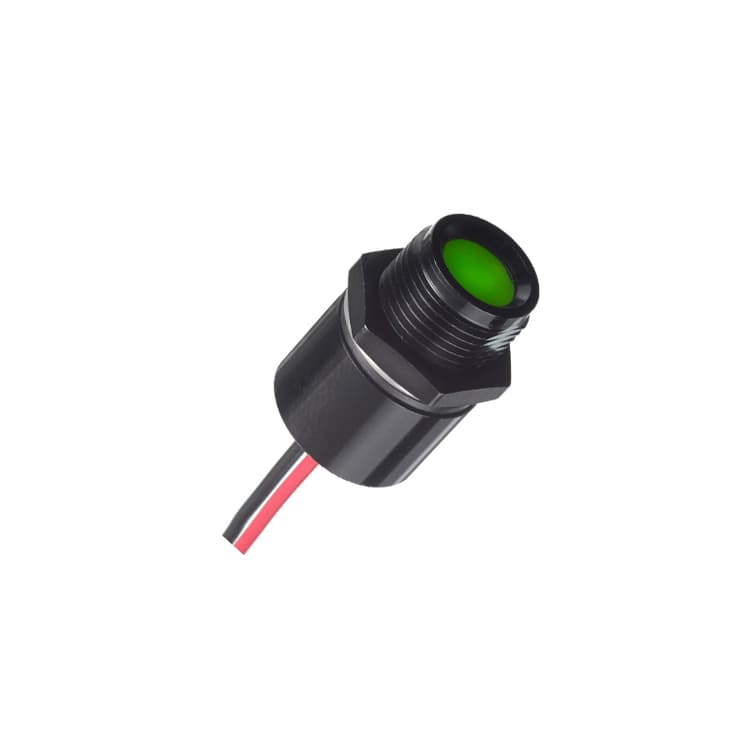

QRM145BXXSG24E
The QRM145BXXSG24E LED Indicator is a versatile and reliable product that is sure to meet your needs. With its 14 mm Mounting Hole, it can be easily installed in various applications. The Terminals are designed for easy connection with wires. The sleek Black Bezel Finish adds a touch of sophistication to any setting. The Fixed Light illumination provides a consistent and steady glow. The Super Bright Green LED color ensures clear visibility. With a Voltage of 24 VDC, this LED Indicator is energy efficient. Additionally, its IP67 Standard sealing offers protection against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 14 mm
- Led Colour: Super Bright Green
- Voltage: 24V DC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- IP67 Sealed
- Bi-Color & Tri-Color Options
- 2 to 28 VDC
- 200 mm wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max panel thickness: 10 mm
- Torque: 75 cNm
Environmental Specifications:
- Operating Temperature Range: –40 °C to +85 °C
- Storage Temperature Range: –55 °C to +100 °C
- IP67 sealed (EN60529)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.8 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
