Q8R6BXXR02E

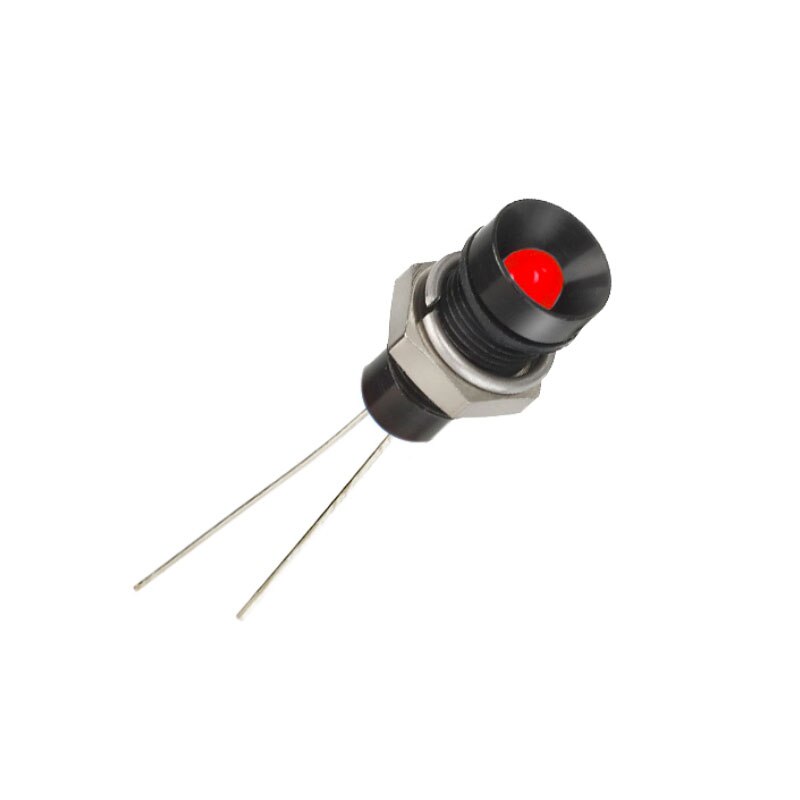

The Q8R6BXXR02E LED Indicator is a versatile and reliable component that offers a wide range of applications. With an 8 mm Mounting Hole, it can fit seamlessly into various devices and equipment. Its Recessed Bezel Style adds a sleek and modern touch to any design. The Indicator features Short body Pins as Terminals, ensuring a secure and hassle-free connection. Its Black Bezel Finish not only enhances its aesthetic appeal but also provides durability. The Fixed Light Type Of Illumination ensures consistent and steady brightness. With a vibrant Red LED Color, it is easily visible in any environment. Operating at a standard Voltage and with no resistor required, it offers convenience and simplicity. Additionally, its IP67 Sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 8 mm
- Led Colour: Red
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Short Body Pins
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clear
- super bright LEDs
- Prominent, recessed and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations (2.0 x 0.5) solder lug/faston terminals on
- tri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
