Q8R1CXXW24E

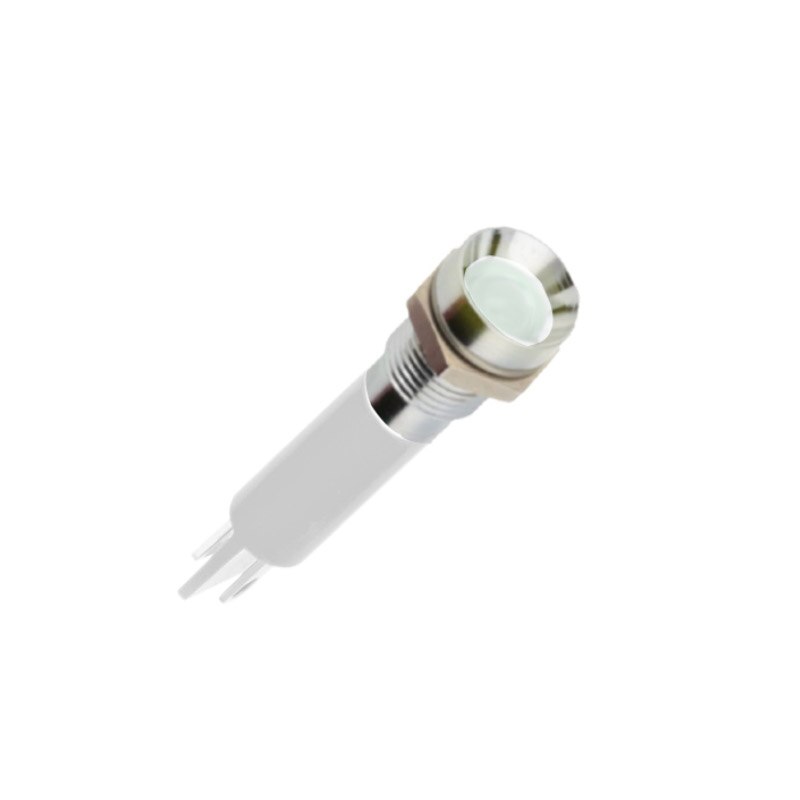

The Q8R1CXXW24E LED Indicator is a versatile and reliable component that can be seamlessly integrated into various electronic devices. Its 8 mm Mounting Hole ensures a secure and snug fit, while the Recessed Bezel Style adds a sleek and modern touch to any design. With Solder Lug Fastons 28 x 08 Terminals, installation is a breeze. The Bright Chrome Bezel Finish adds a touch of elegance and durability. The Fixed Light Type of Illumination ensures a consistent and reliable light source. The White LED Color provides a clear and bright illumination. With a Voltage of 24 VDC, it is compatible with a wide range of power sources. Finally, the IP67 Sealing ensures protection against dust and water, making it suitable for both indoor and outdoor applications.
Key Features
- Mounting Hole: 8 mm
- Led Colour: White
- Voltage: 24V DC
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clear
- super bright LEDs
- Prominent, recessed and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations (2.0 x 0.5) solder lug/faston terminals on
- tri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
