Q12P3CXXR28E

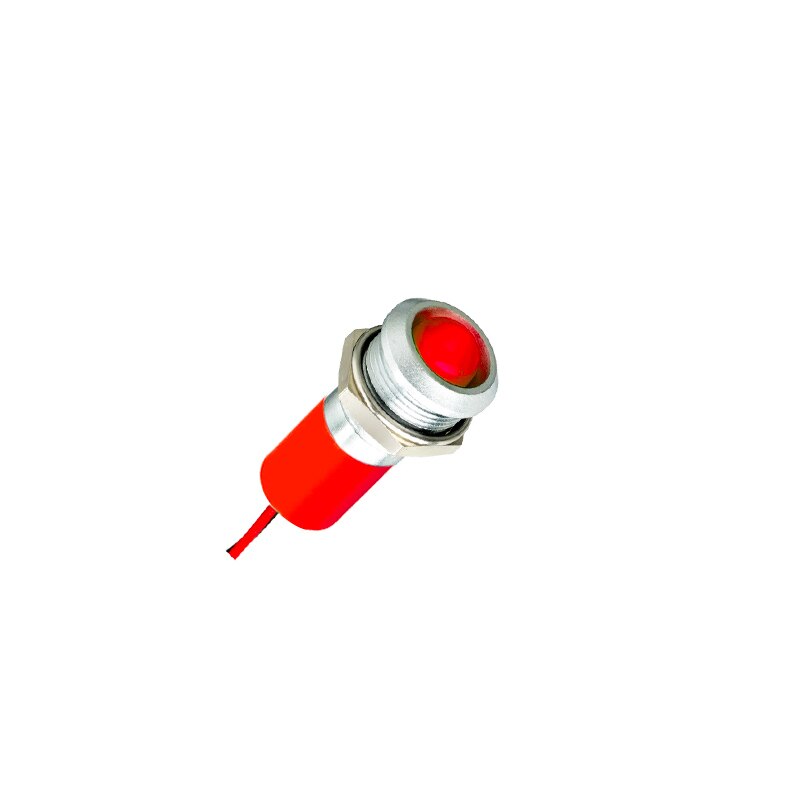

Introducing the Q12P3CXXR28E LED Indicator, a versatile and reliable lighting solution for various applications. Designed with a 12 mm mounting hole, installation is a breeze. Its prominent bezel style adds a touch of elegance to any setup. With wires as terminals, connecting the indicator is simple and hassle-free. The bright chrome finish of the bezel gives it a sleek and polished look. Emitting a fixed red light, it provides clear and vibrant illumination. Operating at 28 VDC, it ensures efficient performance. And with an IP67 sealing, it is protected against dust and water, making it suitable for both indoor and outdoor use.

Key Features
- Mounting Hole: 12 mm
- Led Colour: Red
- Voltage: 28V DC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
