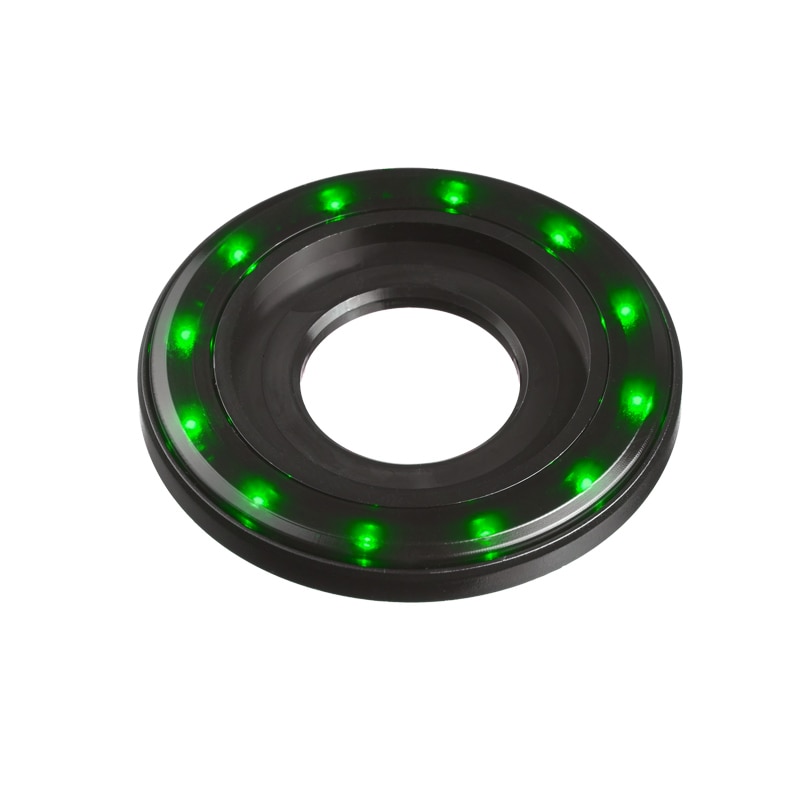

QH22L28GC
The QH22L28GC is a LED indicator with a green LED color that provides clear and visible signaling. It is designed with a high level of sealing, achieving an IP67 rating, which ensures protection against dust and water ingress. This makes it suitable for various applications in both indoor and outdoor environments. The QH22L28GC is a reliable and durable solution that offers excellent performance and long-lasting operation.
Key Features
- Bezel Color: Black
- Sealing: IP67 (panel seal)
- Series: QH
- Size: 22 mm cutout
- Led Color: Green
- Lens Color: Tinted
Specifications
Distinctive Features:
- Single, dual and RGB colors available
- Designed to integrate with Ø16, Ø19, Ø22 and Ø30 mm panel
- cutout switches and other APEM and IDEC components
- Ø22 mm oversized version for integration with APEM’s range of
- Emergency Stop switches
- Panel sealed up to IP67
- 200 mm 26 AWG UL1061 wire terminations
General Specifications:
- Life Expectancy : 50,000 Hours
- Viewing Angle : 120°
- Max Reverse Voltage : 5VDC
Environmental Specifications:
- Panel seal to IP67
- Operating Temperature Range : -30 to +85°C
Electrical Specifications:
- 12VDC 10.8 to 13.2 10mA
- 24VDC 21,6 to 26.4 10mA
