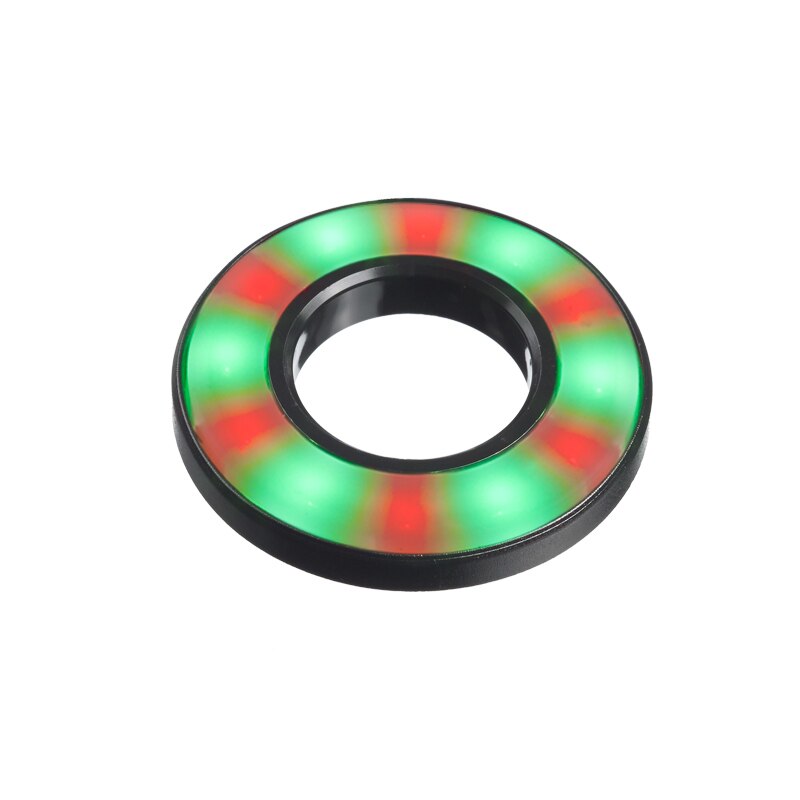

QH19027RGC
The QH19027RGC is an LED indicator with a dual-color LED that emits red and green light. It is designed with a high level of sealing, rated at IP67, ensuring it is fully protected against dust and capable of withstanding immersion in water up to 1 meter deep for 30 minutes. This makes it suitable for use in various applications that require reliable and durable indicators, even in harsh environmental conditions.
Key Features
- Bezel Color: Black
- Sealing: IP67 (panel seal)
- Series: QH
- Size: 19 mm cutout
- Led Color: Red/Green
- Lens Color: Frosted White
Specifications
Distinctive Features:
- Single, dual and RGB colors available
- Designed to integrate with Ø16, Ø19, Ø22 and Ø30 mm panel
- cutout switches and other APEM and IDEC components
- Ø22 mm oversized version for integration with APEM’s range of
- Emergency Stop switches
- Panel sealed up to IP67
- 200 mm 26 AWG UL1061 wire terminations
General Specifications:
- Life Expectancy : 50,000 Hours
- Viewing Angle : 120°
- Max Reverse Voltage : 5VDC
Environmental Specifications:
- Panel seal to IP67
- Operating Temperature Range : -30 to +85°C
Electrical Specifications:
- 12VDC 10.8 to 13.2 10mA
- 24VDC 21,6 to 26.4 10mA
