TH102D22R1

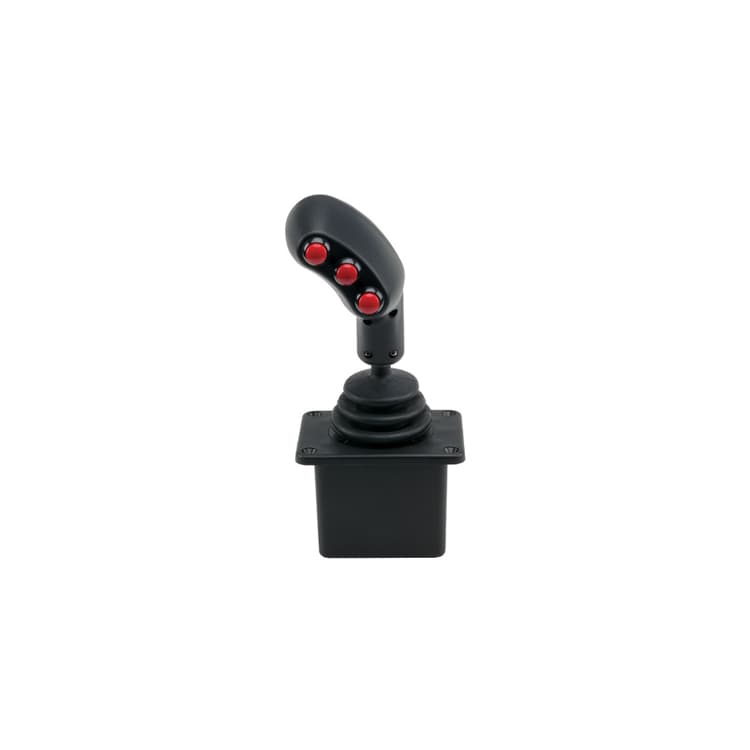

The TH102D22R1 Joystick, also known as the Stock Grip, is a versatile handle that provides precise control in various applications. It features microswitches, or micro-interrupteurs, which ensure accurate and reliable input signals. The joystick is equipped with mechanical detents, or détentes mécaniques, that provide tactile feedback and prevent accidental movements. With its rear mount installation, or montage, the joystick can be easily mounted onto any compatible surface. The TH102D22R1 offers a wide range of output options, or options de sortie, from 05V to 45V, allowing for seamless integration with different systems.
Key Features
- Top Buttons: Two
- Handle: Stock Grip
- Side Buttons: Operator presence paddle
- Mechanical Detents: 0°
- Series: TH
- Output Options: 0.5V to 4.5V
- Mounting Options: Rear mount
- Front Buttons: None
- Microswitches: 0°
Specifications
Distinctive Features:
- Single piece case
- Epoxy sealed terminals
- Washable version available
- Wide variety of contact materials
- Same PCB layout as TL, TP and TR subminiature series
General Specifications:
- Rugged, hand operation
- Hall effect sensing
- Single axis friction clutch operation
- Optional mechanical detents and/or microswitches
- Redundant outputs available
- Mechanical Life: 1 million cycles
Environmental Specifications:
- Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
- Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
- EMC Immunity Level (V/M): IEC 61000-4-8:2009
- EMC Emissions Level: IEC 61000-4-3:2006
- ESD: IEC 61000-4-2:2008
Electrical Specifications:
- Sensor: Hall effect
- Supply Voltage Operating: 5.00VDC
- Reverse Polarity Max: -14.5VDC
- Overvoltage Max: 18VDC
- Output Impedance: 6Ω
- Current Consumption Max: 10mA
