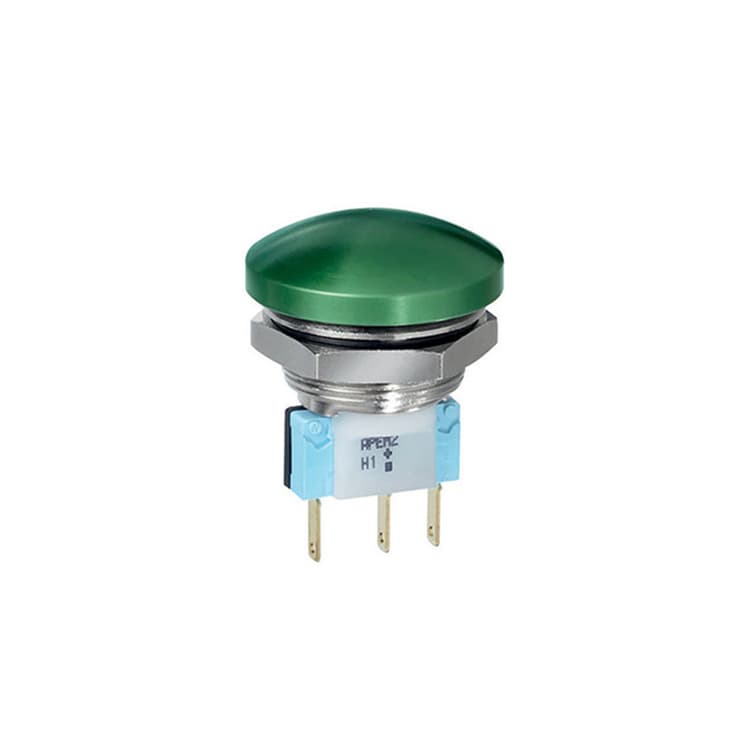

AV - 22 - mushroom head

The AV Series pushbuttons offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.


Main features

  • Security pushbutton switches
  • Momentary (combined NC+NO)
  • Actuator and bushing : brass, nickel plated, aluminim, anodized
  • Different anodized colors available
Product detail
Product detail

Key Features

• Torque : 1.5 Nm min.- 4 Nm max. applied to nut • Panel thickness : 1 (.039) to 6 mm (.236) max. • Low level or mechanical life : 1,000,000 cycles • Hand soldering : 300 °C, 5 sec. max. • Panel cut-out : Ø 22.2 mm (.874) • Min. pitch for matrix mounting : 30 mm x 30 mm (1.181x1.181)
1 Products
Filters
  1. image placeholder
    AV - 22 - mushroom head
    AV22PNA6B
    • Sealing: IP65
    • Actuator Colors: Maroon
    • Actuator Diameter: 30.1mm(1.181in)

Showing 1 of 1 Products
