TS Series

TS

New product

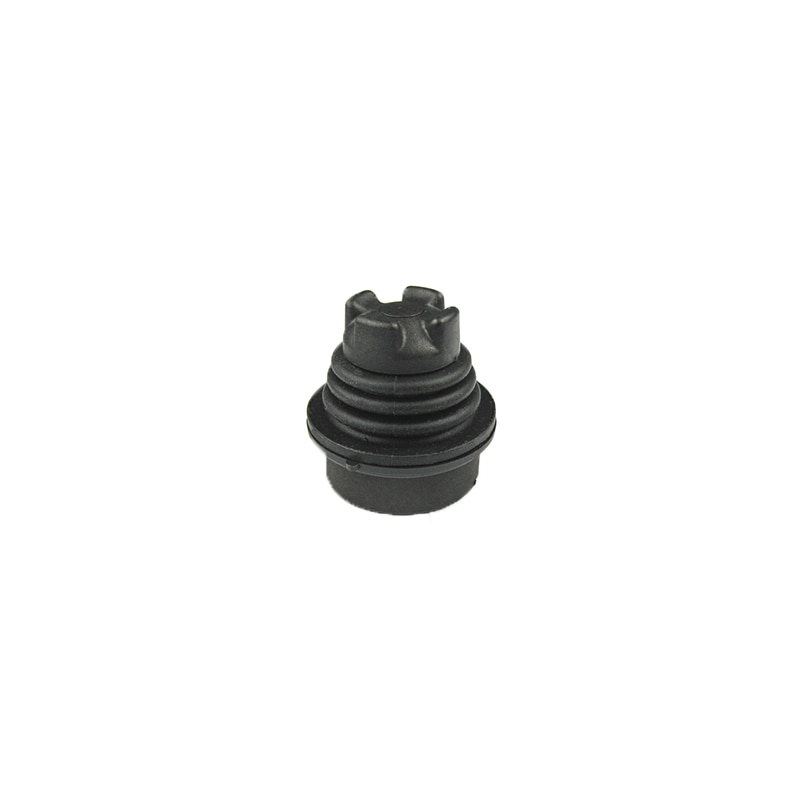

The TS Series Thumbstick is a proportional two axis joystick in a miniature package. Featuring non-contacting Hall effect technology for long life performance, the TS Series Thumbstick is available with multiple linear output options including single and dual (redundant) outputs. It is similar in size and operation to "gamepad" controls, but in a rugged industrial package. Typical applications include pendant and remote controls as well as a joystick handle and arm rest integration.

  • U.S. Patent #D816,169
  • U.S. Patent #D732,047 S
  • U.S. Patent #D734,138 S


Main features

  • Now available with threaded plastic D-flat housing & LED options
  • 1 or 2 axis
  • USB outputs available
  • Non-contact Hall effect technology
  • IP67 above panel sealing
  • Pressure washable to IP69K
  • Redundant outputs available
  • Rear or drop-in mounting available

More details

By phone

978-372-1602 East Coast
760-598-2518 West Coast

Monday – Friday 8am to 4pm

Complementary products
  • 3000 Series

    The 3000 Series is the very latest generation in high precision contactless joysticks. With a class leading installed depth of <20mm, it is available in 1,2, or 3 axis formats. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analog signals or custom PWM output options. The 3000 Series also delivers a...

  • CW Series

    The CW Series is a revolutionary Hall effect control wheel providing proportional control in one miniature axis. A spring return device, the CW is available with your choice of linear output options and wheel colors. Ideal applications include joystick, "gamepad", armrest and panel mount integration. U.S. Patent #D767,685 SU.S. Patent #D740,886 SMain...

  • TW Series

    The TW Series Thumbwheel is a minimum width, low profile joystick that provides smooth, precise fingertip control in one axis.  Featuring non-contacting Hall effect technology for long life performance, the TW series  offers excellent proportional control, stable output, long life and is designed for panel mount applications and joystick...

More info

Ergonomics 1

Ergonomics 2

Features

General specification

• 1 or 2 axis
• USB outputs available
• Non-contact Hall effect technology
• Pushbutton & LED options
• IP67 Above panel sealing
• Pressure washable to IP69K
• Redundant outputs available
• Rear or drop-in mounting available

Environmental specifications

• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Sealing: IP67, IP69K2
• EMC Immunity Level: EN61000-4-3
• EMC Emissions Level: EN61000-6-3:2001
• ESD: EN61000-4-2

Electrical specifications

• Technology: Hall effect sensors, single or dual
• Supply Voltage Range: 5.00V±0.01V
• Supply current: 11mA max
• Ratiometric output options: see options
• Reverse Polarity Max: -10V
• Transient overvoltage Max: 16V
• Start-up time: 15ms max
• Output Impedance: 2Ω
• Return to Center Voltage Tolerance: ±200mV initial

Materials

• Body: Glass filled nylon
• Threaded Body: Black oxide plated brass
• Boot: Silicone
• Handles:
1, 2, 3, E, F, G - Glass filled nylon
4, 5, 6, 7, 8 - Silicone
B, C, D - Thermoplastic elastomer
H - Polycarbonate

mechanical specifications

• Operating Force: 3.1N±0.5N (0.70lbf±0.11lbf)1
• Maximum Vertical Load: 200N (45lbf)1
• Maximum Horizontal Load: 150N (33.7lbf)1
• Mechanical Angle of Movement: 50°
• Expected Life: 1 million cycles
• Mass/weight: 18.25g ± 5.0g (0.64oz±0.18oz)
• Lever Action (Centering): Spring centering
