ZP

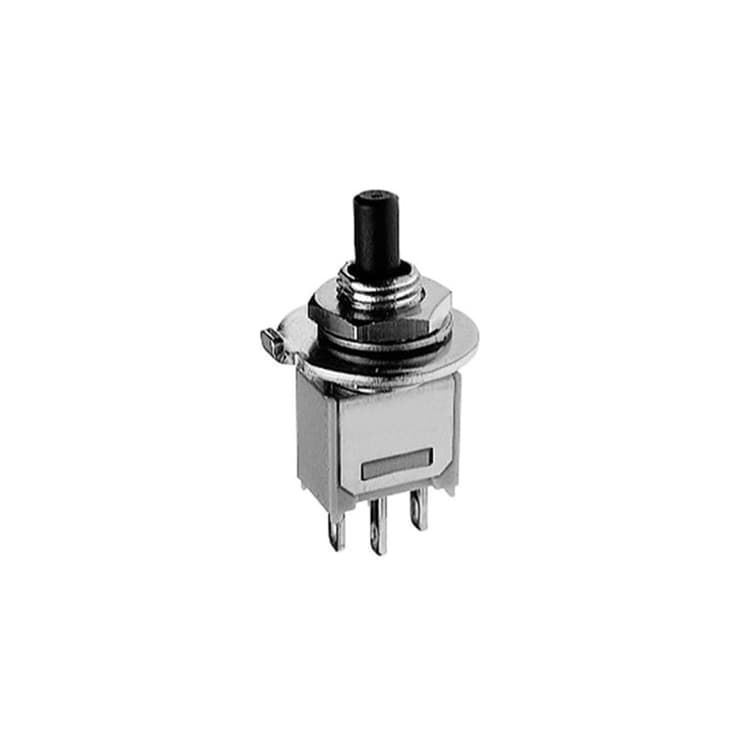

ZP series are tiny pushbutton switches with metal bushing

Main features

  • Single or double throw pushbutton switches
  • Solder log and straight PC terminals
  • Gold or silver plated contacts
  • Ø4,83 mm threaded bushing
  • Momentary contacts
Product detail
Product detail

Key Features

• Travel : - function 2 (ON-MOM) : 1,2 mm (.047) ± 0,3 (.11) - function 3 (OFF-MOM) : 1 mm (.039) ± 0,3 (.11) • Strength of terminals : pull-out force 10N max. • Torque : 1Nm max. applied between the 2 nuts • Max. panel thickness : 1,5 mm (.059) with 2 nuts • Operating temperature : -30°C to +85°C • Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) • Hand soldering : 280°C max. for 5 seconds max. • Wave soldering : 260°C max. for 5 seconds max.
9 Products
Filters
  1. Featured Products
    image placeholder
    ZP
    ZP33S030100
    • Model: Standard
    • Terminals: Solder Lug
    • Number Of Poles: Single Pole
  2. image placeholder
    ZP
    ZP33S010100
    • Model: Standard
    • Terminals: Solder Lug
    • Number Of Poles: Single Pole
  3. image placeholder
    ZP
    ZP33S000100
    • Model: Standard
    • Terminals: Solder Lug
    • Number Of Poles: Single Pole
  4. image placeholder
    ZP
    ZP33P000100
    • Model: Standard
    • Terminals: Straight PC
    • Number Of Poles: Single Pole
  5. image placeholder
    ZP
    ZP33P030100
    • Model: Standard
    • Terminals: Straight PC
    • Number Of Poles: Single Pole
  6. image placeholder
    ZP
    ZP32S010100
    • Model: Standard
    • Terminals: Solder Lug
    • Number Of Poles: Single Pole
  7. image placeholder
    ZP
    ZP32S000100
    • Model: Standard
    • Terminals: Solder Lug
    • Number Of Poles: Single Pole
  8. image placeholder
    ZP
    ZP32P030100
    • Model: Standard
    • Terminals: Straight PC
    • Number Of Poles: Single Pole
  9. image placeholder
    ZP
    ZP32P000100
    • Model: Standard
    • Terminals: Straight PC
    • Number Of Poles: Single Pole

Showing 1~ 9 of 9 Products
