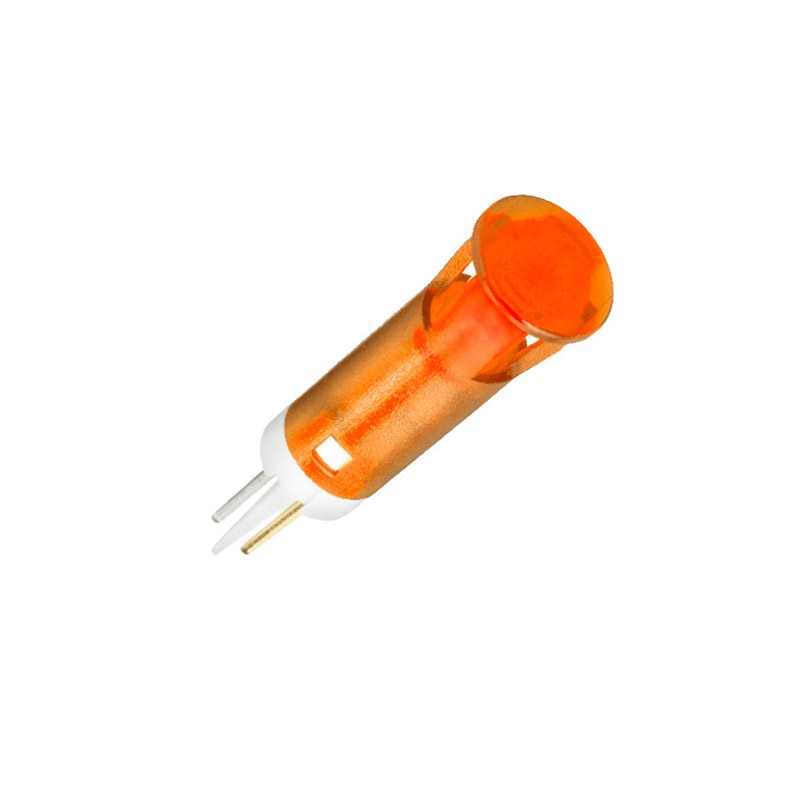

QS101XXO12
The QS101XXO12 LED Indicator is the perfect solution for any application requiring a reliable and efficient lighting system. With a mounting hole diameter of 10 mm, it can easily be installed in various settings. The solder lug faston terminals ensure a secure and stable connection, guaranteeing optimal performance. The fixed light illumination provides a consistent and steady glow, making it ideal for visual signaling purposes. The vibrant orange LED color adds a touch of vibrancy and visibility to any environment. Operating at a voltage of 12 VDC, this LED indicator is both energy-efficient and long-lasting, making it a versatile choice for a wide range of industries.
Key Features
- Mounting Hole: 10 mm
- Led Colour: Orange
- Voltage: 12V DC
- Terminals: Solder Lug Faston
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 6 mm, 8 mm, 10 mm and 12 mm Ø cut-out sizes
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LED
- for daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
