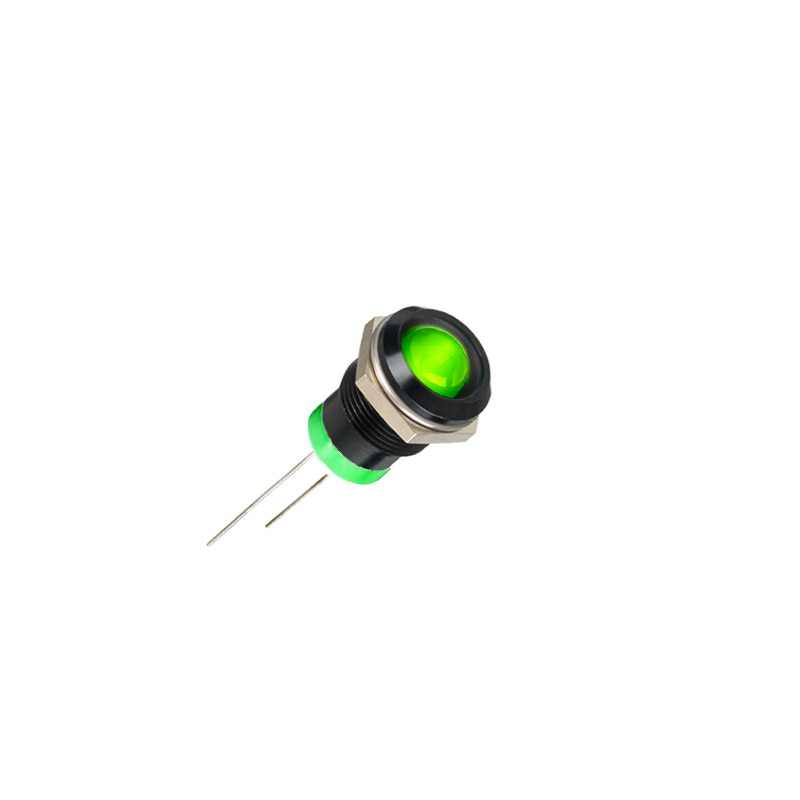

Q12P6BXXG12
Introducing the Q12P6BXXG12 LED Indicator, a powerful and versatile component for your electronic projects. With its 12 mm Mounting Hole, it fits seamlessly into any device, ensuring easy installation. The Prominent Bezel Style adds a touch of elegance to your designs, while the Short body Pins Terminals provide a secure connection. The sleek Black Bezel Finish enhances the overall aesthetic appeal. Enjoy the Fixed Light Type Of Illumination, providing steady and reliable illumination in any environment. The vibrant Green LED Color brings life to your creations. Operating at 12 VDC, this LED Indicator delivers optimal performance. Please note that it is unsealed, so ensure proper protection in challenging conditions.
Key Features
- Mounting Hole: 12 mm
- Led Colour: Green
- Voltage: 12VDC
- Sealing: Unsealed
- Terminals: Short body pins
- Bezel Finish: Black
- Type Of Illumination: Fixed light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clear
- super bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
