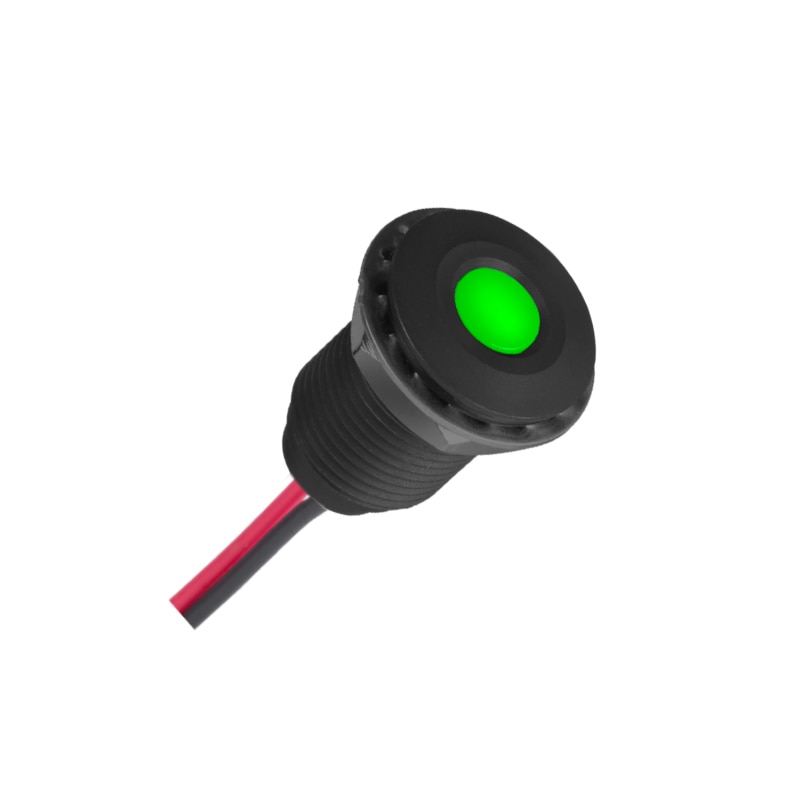

Q10F5ANXXSG28E
The Q10F5ANXXSG28E LED Indicator is a versatile and reliable solution for various applications. With a mounting hole diameter of 10 mm, it can be easily installed in different settings. Its sleek flush bezel style adds a touch of elegance to any design. The rear epoxy wires provide convenient and secure terminal connections. The black bezel finish gives it a modern and sophisticated look. The fixed light illumination ensures constant and reliable visibility. With its super bright green LED color, it stands out in any environment. Operating at a voltage of 28 VDC, it is energy-efficient and cost-effective. Additionally, its IP67 sealing ensures protection against dust and water, making it suitable for use in challenging environments.

Key Features
- Mounting Hole: 10 mm
- Led Colour: Super Bright Green
- Voltage: 28V DC
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5 mm flush diffused LED, standard, hyper bright or water clear
- Flush chamfered bezel style
- (200 mm long) wire terminations
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60° *
- Life Expectancy: 100,000 hours
- Torque: 20 to 25 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
