QRM-NV85BXXNV-GRB12E

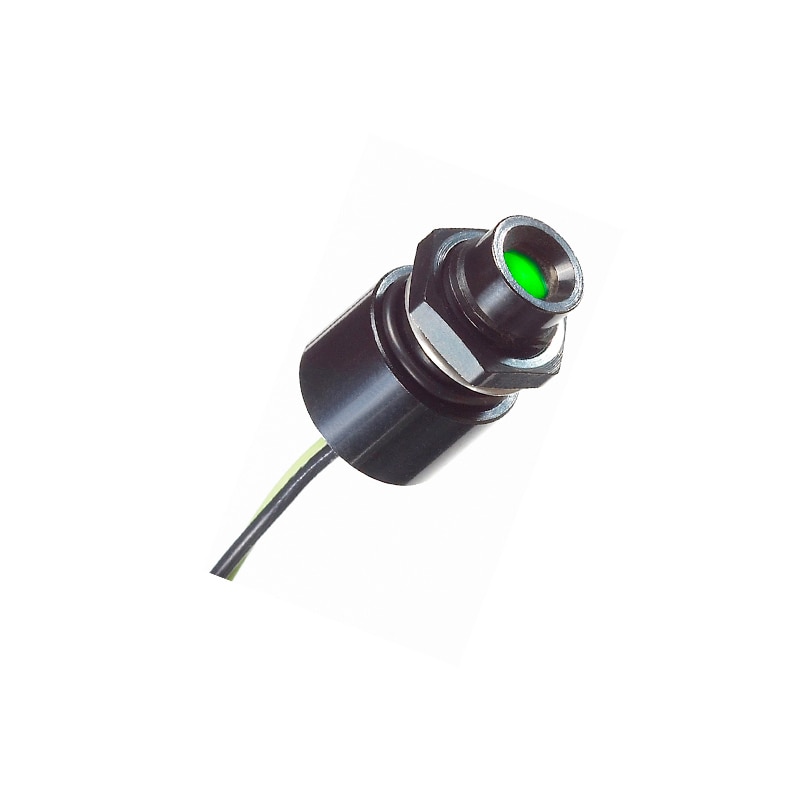

The QRM Series 8 mm Ø diameter indicators are rear mounted, epoxy sealed LED indicators designed for night vision applications.
Specifications
Distinctive Features:
- NVIS Green A, NVIS Green B, NVIS Yellow, NVIS Red, NVIS White
- NVIS compliant to MIL Std 3009
- 200 mm wire for Ø 8 and 14 mm or rigid pin (1.00 mm) for Ø8 mm
- Terminations
General Specifications:
- The QRM Series 8mmØ diameter indicators are rear mounted, epoxy sealed LED indicators designed for night vision applications. They are available in bi-colored and tri-colored LEDs. The QRM are: - NVG Compatible - NVIS Compliant to MIL Std 3009 - IP67 sealed to EN60529 - Rear end epoxy sealed - Black chrome finish
Environmental Specifications:
- IP67 sealed (EN60529)
Electrical Specifications:
- Max Reverse Voltage: 5V Viewing Angle: 60° Life Expectancy: 100,000 hours Operating Temperature Range: –40 to +85°C Storage Temperature Range: –55 to +100°C Max panel thickness: 3.5mm Torque: 60cNm
Materials:
- Body: Black plated brass Nut: Black plated brass Panel seal: Nitrile O-ring Lock washer: Spring steel Terminal seal: Epoxy Wires: 24AWG to UL1213
