TS4R2G00A

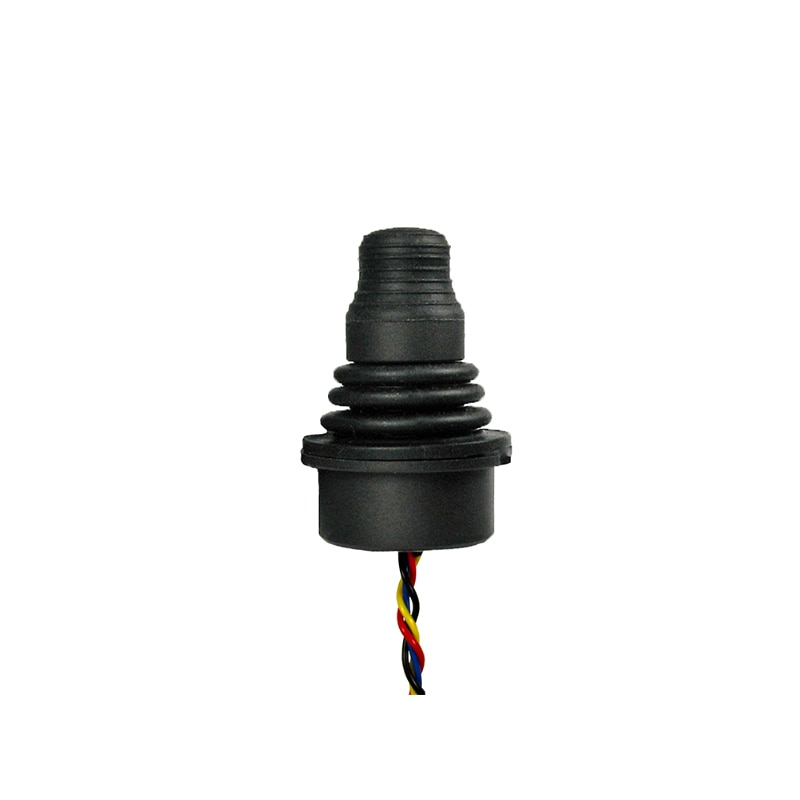

The TS4R2G00A Joystick, also known as the Finger Tip, is the perfect accessory for any control system. Its ergonomic design provides a comfortable grip, allowing for precise and effortless control. With its rear mount installation, it can be easily integrated into any setup. The 28 AWG 25 cm PTFE2 2 termination ensures reliable and efficient signal transmission. The guided feel limiter provides a smooth and accurate range of motion. The output range of 0 V to 5 V allows for flexible compatibility with various devices. Additionally, the LED control and LED color options add a customizable touch to your setup.
Key Features
- Limiter: Guided Feel
- Power: Single
- Termination: 28 AWG PTFE (25 cm ± 1.27 cm)
- Mounting: Rear
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
