TS4R1G01A

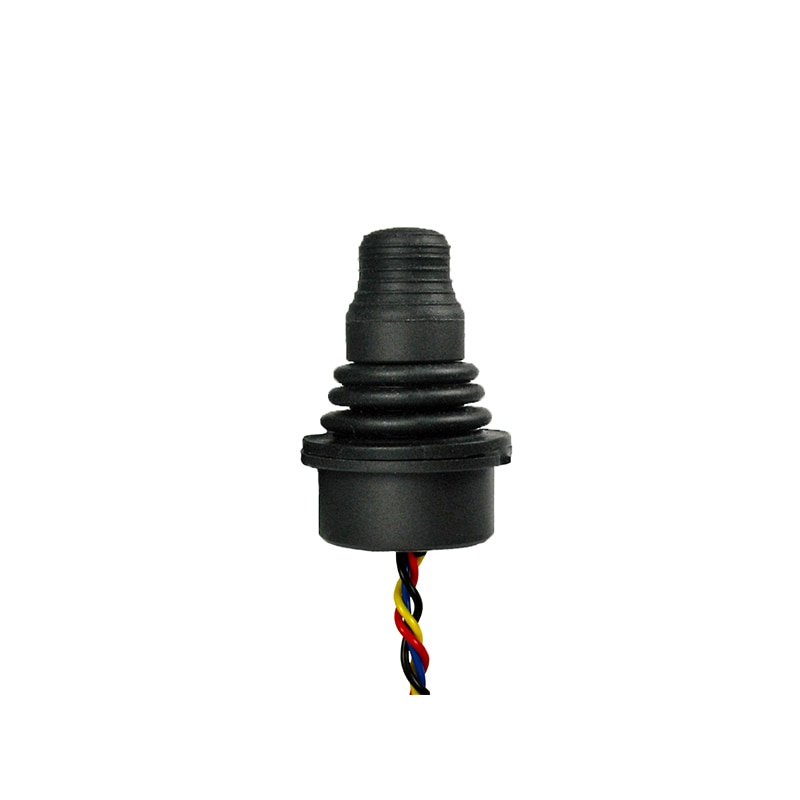

The TS4R1G01A Joystick, also known as the Finger Tip, is a versatile and reliable control device. With its ergonomic design and comfortable handle, it provides an intuitive and effortless user experience. The rear mount installation ensures stability and easy integration into any system. Featuring a guided feel limiter, it allows for precise and controlled movements. The output ranges from 0.25 V to 4.75 V, providing flexibility for various applications. The Joystick also includes LED control and color options, allowing for enhanced visual feedback and customization. .
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
