TS1D1G06A

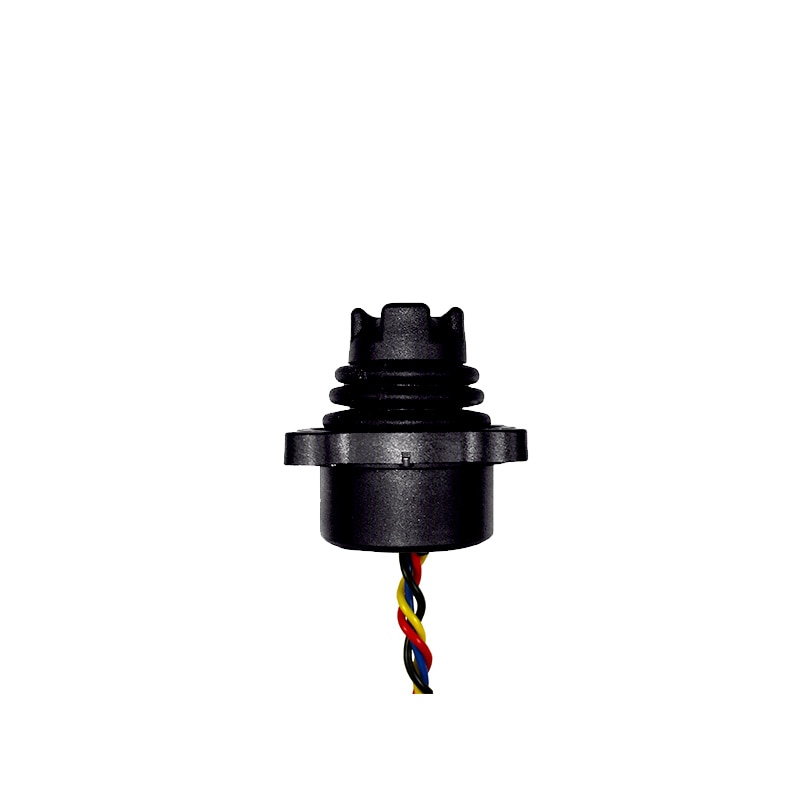

The TS1D1G06A Joystick, also known as the Castle, is a versatile handle that provides a comfortable grip for precise control. Its drop-in mounting style ensures easy installation in various applications. With its guided feel limiter, users can experience a smooth and controlled movement. The joystick offers multiple output options, including a 05 V to 45 V sensor for both Sensor 1 and Sensor 2. Additionally, it features LED control for customized lighting effects, allowing users to select their preferred LED color.

Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
