NVH2D1F1CP2S

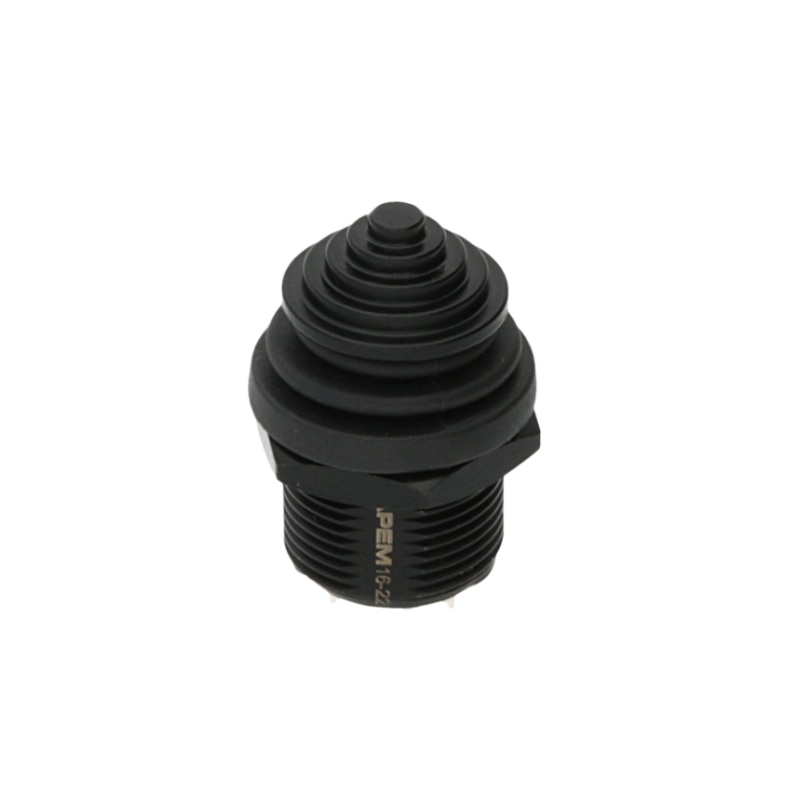

The NVH2D1F1CP2S Joystick, also known as the Conical, is a versatile and reliable actuator. It is designed for easy panel mounting, making it suitable for a wide range of applications. With its 50 mA contacts, it ensures a stable and efficient output. The joystick features buttons for added functionality and convenience. It also includes a limiter, allowing for precise control in cross movements. The actuator is available in a sleek and professional black color, and it delivers a standard force for optimal performance.
Key Features
- Actuator: Conical
- Buttons: Yes
- Panel Mount: Drop-in
- Actuator Colours: Black
Specifications
Distinctive Features:
- Tactile feedback in all directions & optional pushbutton
- Compact and low profile behind panel
- Shock, vibration & salt spray resistant
- 1 million lifecycles
- Sealed to IP69K
General Specifications:
- Panel thickness : 1 to 10 mm (.039 to .393)
Environmental Specifications:
- Front panel sealing: IP69K (DIN 40050-9), IP67 (IEC 60529)
- Shock resistance - IEC 60068-2-27: 3 sinusoidal impulse 300m/s² 18ms on 3 axis
- Vibrations (random, 3 axis) per IEC 60068-2-64: 10-350Hz
- Vibrations (sinus) IEC 60068-2-6: 10-200Hz / 20m/s² dwell period 30 min.
- Salt Spray: 96 h IEC 60068-2-11/KA
- Damp heat per IEC 68-2-78: 40°C 93% HR 10 days
- Cold and dry heat, temperature shock IEC 68-2-14/Na: -40°C to +85°C - 10 cycles
- Operating temperature: -40°C / +65°C
Electrical Specifications:
- Electrical function : 4 or 5 momentary NO
- Max. current/voltage rating with resistive load : 50mA 12VDC
- Electrical life at full load :1.000.000 cycles per direction1.000.000 cycles for pushbutton
- Output : MOLEX 6 pin connector (Ref: 53398-0671) Mating connector Molex 51021-0600
