XS140CCA14A02000

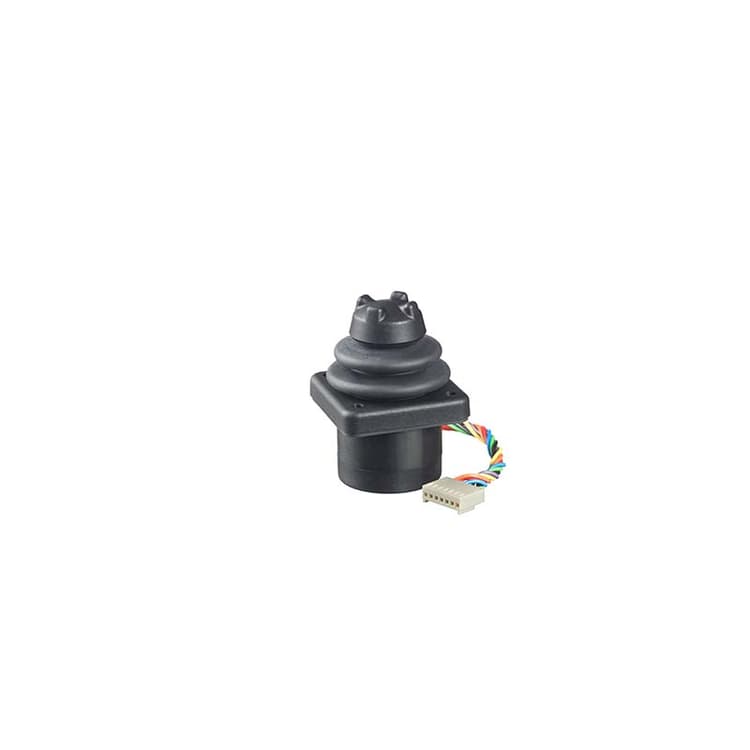

The XS series is a two axis Hall effect joystick featuring a reduced panel height to provide precise fingertip control.
Key Features
- Configuration: Standard
- Modifier: None
- 1: A
- Spring force: Extra heavy (2.5 N)
- Gain: ±40%xV
- Bezel: None
- Feel: Guided NESW
- Handle: Castle
- Series: XS
- Handle color: Black
- Limiter: Cross
Specifications
General Specifications:
- Operating Temperature: -30 °C to +85 °C
- Storage Temperature: -40 °C to +110 °C
- Sealing: IP66
Environmental Specifications:
- EMC Immunity Level: EN61000-4-3 80 MHz-6 GHz, 10-1 V/m plus80MHz-2.7GHz, 100V/m (Extended)
- EMC Emissions Level: CISPR 16-1, 16-2 30-230 MHz/230-1000MHz/1-3GHz/3-6 GHz, 50 dBμV/m/57 dBμV/m/76 dBμV/m/80 dBμV/m
- ESD: IEC 61000-4-2 (Extended): ±8 kV, Air: ±15 kV
- Power-frequency magnetic field: IEC 61000-4-8 30 A/m elevated to 400A/m
- Electromagnetic fields: 4 mT static magnetic field (3200A/m DC)
Electrical Specifications:
- Output Voltage Range: ±10% x V to ±50% x V
- Output at Center: V/2 ±(5% x gain)
- Power Supply: 5 V ±0.5 V transient free 3.3 V ±0.1 V (configuration 2)
- Output impedance: 10 Ω
- Overvoltage max: +20 V
Materials:
- Shaft: Stainless steel
- Boot: Neoprene
- Handles: Nylon
Mechanical Specifications:
- Operating Force: 1 N - 2.5 N (Dependant on configuration)
- Maximum Load: 400 N (89.921 lbf) (subject to handle)
- Mechanical Angle of Movement: 36° X & Y axis (subject to limiter)
- Expected Mechanical Life: 10 million lifecycles
- Mass/weight: 100 g (3.53 oz) nominal
- Lever Action (centering): Spring
