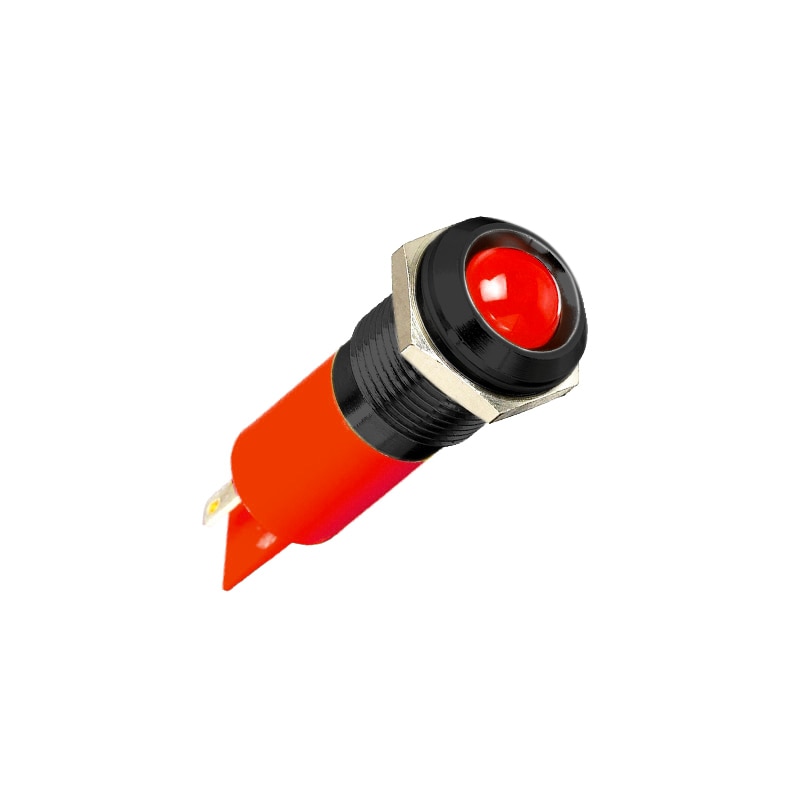

Q14P1BXXHR110E
The Q14P1BXXHR110E LED Indicator is a versatile and reliable solution for a wide range of applications. With its 14mm mounting hole, it can easily be installed in various equipment. The prominent bezel style adds a sleek and modern touch to any design. Featuring solder lug fastons terminals, it ensures a secure and efficient connection. The black bezel finish gives it a sophisticated look. With fixed light illumination, it provides a steady and clear indication. The hyper bright red LED color is highly visible and attention-grabbing. Operating at 110 VAC, it ensures a consistent and powerful performance. With an IP67 sealing, it is protected against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 14mm
- LED Color: Hyper Bright Red
- Voltage: 110V AC
- Sealing: IP67
- Terminals: Solder Lug Fastons (28 x 0.8)
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs
- Prominent and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
