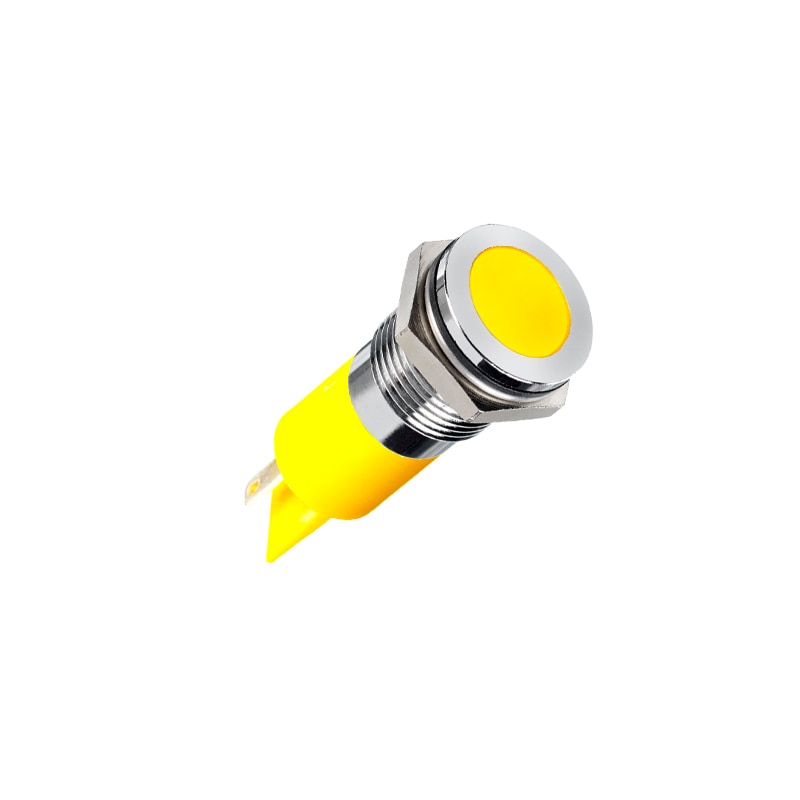

Q14F1CXXY24E
The Q14F1CXXY24E LED Indicator is a versatile and reliable lighting solution for various applications. With a mounting hole diameter of 14mm, it can be easily installed in any compatible panel. The flush bezel style adds a sleek and seamless look to your equipment. The indicator is equipped with solder lug fastons for secure and efficient connection. Its bright chrome bezel finish adds a touch of elegance to your design. The fixed light illumination provides a consistent and steady glow. With its yellow LED color, it offers clear and vibrant visual indication. Operating at a voltage of 24 VDC, it ensures efficient and reliable performance. The IP67 sealing provides excellent protection against dust and water, making it suitable for both indoor and outdoor use.

Key Features
- Mounting Hole: 14mm
- LED Color: Yellow
- Voltage: 24VDC
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs
- Prominent and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
