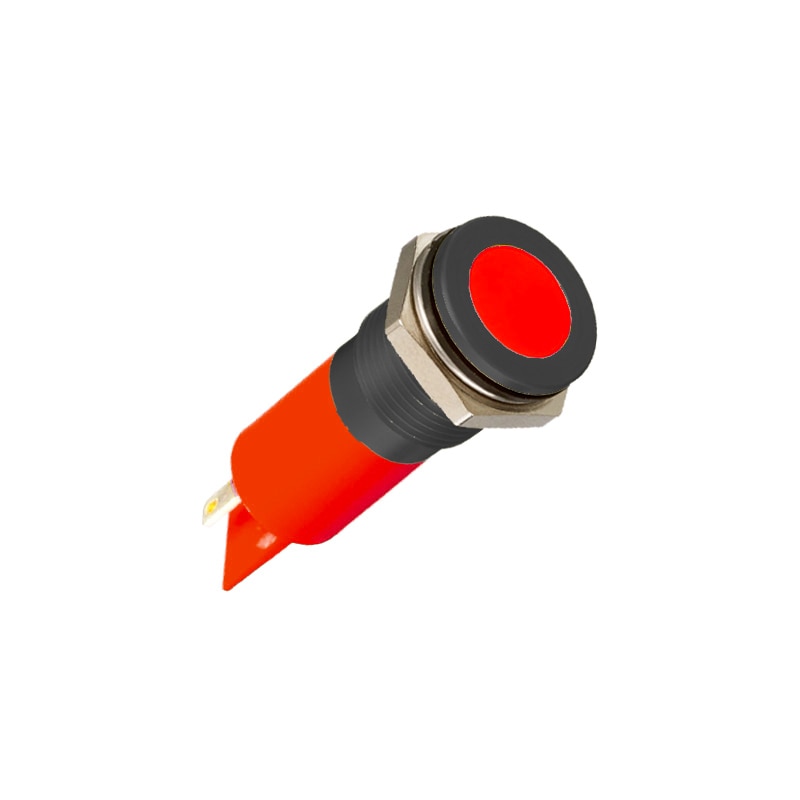

Q14F1BXXR110E
Panel mount LED indicators with 10 mm coloured diffused epoxy lens
Key Features
- Voltage: 110 VAC
- Led Color: Red
- Mounting Hole: Ø14mm
- Series: Q
- Bezel Style: Flush
- Type Of Illumination: Fixed Light
- Bezel Finish: Black
- Sealing: IP67
- Terminals: Solder Lug/ Fastons (2.8 x 0.8)
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs
- Prominent and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
- Maximum panel thickness 11 mm
- Insulation resistance : 4,000 MΩ at 500 VDC
Environmental Specifications:
- IP67 sealing option (EN60529)
- Operating & Storage Temperature Range:
- Rear plastic body: -30 °C to +65° C ( -22 °F to +149 °F)
- Rear epoxy body: -40 °C to +85° C ( -40 °F to +185 °F)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
Materials:
- Plated brass bezel finished in bright chrome
- black or satin grey and moulded polycarbonate rear body
