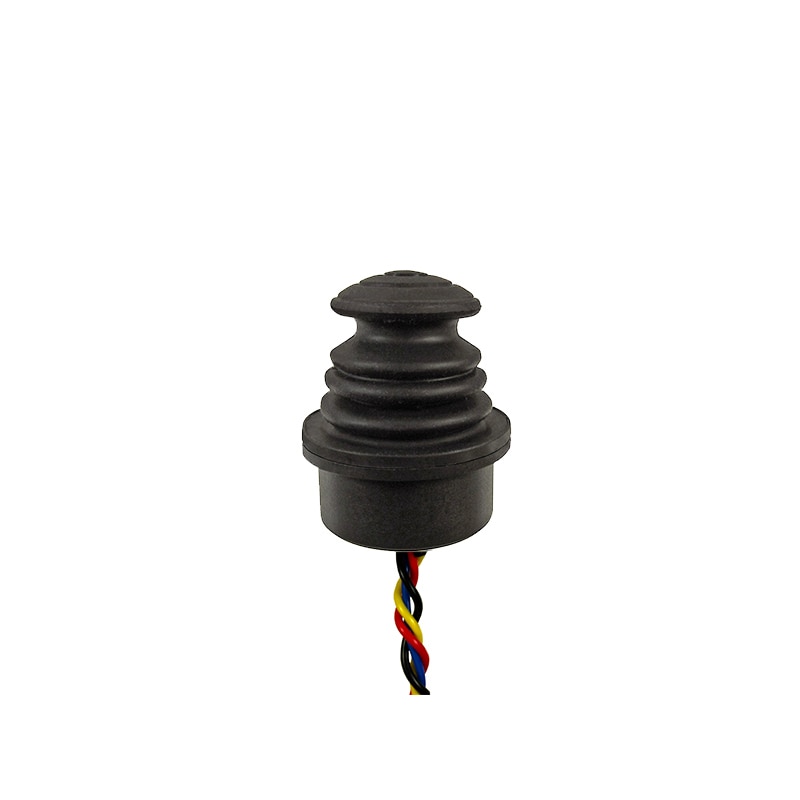

TS7R1U02A
The TS7R1U02A Joystick, also known as the Mushroom1, is the perfect handle for all your joystick needs. Its ergonomic design ensures comfortable and precise control, allowing you to navigate effortlessly through any gaming or industrial application. With its rear mount installation, you can easily integrate this joystick into your existing setup. The single-axis limiter provides added safety and control, ensuring that your movements are restricted within a safe range. The output voltage ranges from 05 V to 45 V, making it compatible with a wide range of devices. The LED control and LED color options allow you to customize the joystick to match your personal style or branding.
Key Features
- Series: TS
- Limiter: Single axis
- Termination: 22 AWG 25 cm PTFE 2-1
- Handle: Mushroom1
- Output Options: 0.5 V to 4.5 V
- Mounting Options: Rear mount
- Power Supply Options: Single
Specifications
Distinctive Features:
- One or two axis
- Analog, PWM or USB outputs
- IP67 Above panel sealing mounting
- Rear or drop-in mounting
- Pushbutton option
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
