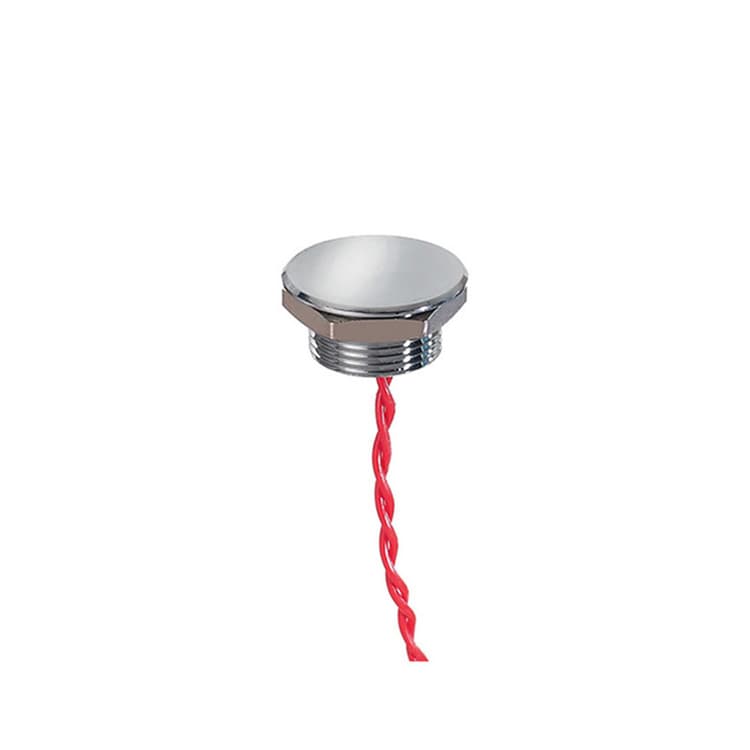

PBAR1AF2000A3A
With its sleek design and reliable functionality, the PBAR1AF2000A3A Panel Switch is perfect for a variety of electrical functions. Whether you need to control lights, appliances, or other electronic devices, this pushbutton switch is up to the task. Its easy mounting capability with flying leads ensures a hassle-free installation process. Choose the PBAR1AF2000A3A Panel Switch for all your electrical needs.
Key Features
- LED Color: Red/Green/Blue
- Electrical Functions: No Pulse
- Mounting: Flying Leads
- Bushing Operator: Flat Operator Height: 45 mm (1.77in)
- Colors Materials: Black Anodized
- Ratings: Standard
- Type Of Illumination Voltage: Standard Ring 5VDC
Specifications
Distinctive Features:
- Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181)
- Sealed to IP68 and IP69K (switches mounted on panel)
- Easy to clean metal surface
- Very long life expectancy
- Ring illumination
General Specifications:
- Operating force : 2 to 6N
- Life expectancy : 50 million cycles
Environmental Specifications:
- Sealing : IP68 per IEC 529, IP69K per DIN 40050-9 (switches mounted on panel)
- Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6
- Operating temperature : -40 °C to +75 °C
- EMC compatibility according to EN 61058-1 for the whole range
- EMC compatibility according to EN 61000-4 & EN61000-6-2 for model 1A (code 002)
Electrical Specifications:
- Max. current/voltage rating :- Function A : standard 200 mA 24 VAC/DC - option 1 A 24 VAC/DC- Function B : standard 100 mA 24 VAC/DC
- Switch resistance ON : 10Ω max.
- Switch resistance OFF : 5MΩ min.
- LED consumption : Illuminated dot 10 mA - Illum. ring 20 mA (functions A-B-C)
- Power consumption for function 1 : non-illum.10 mA - illuminated 30 mA
