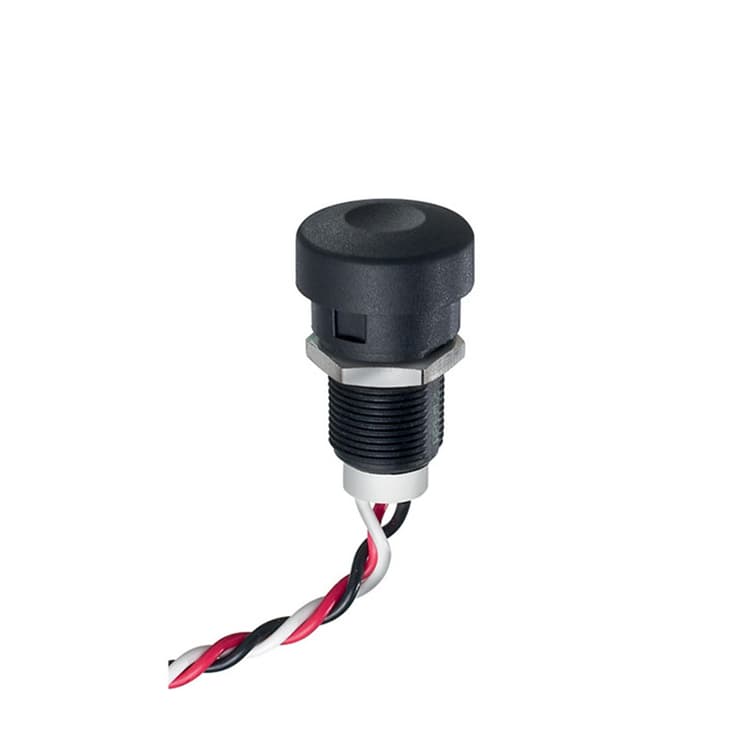

Key Features
-
Series:
IHL
-
Regulator:
None
-
Terminals:
Flying leads
-
Actuator Shape:
Round
-
Actuator Colors:
Green
-
Operating Force:
Standard (4 N to 6 N)
GET DATASHEET
DOWNLOAD 3D FILE
Specifications
Distinctive Features:
- Linear output pushbutton0.5 to 4.5 volt output
- Different operating forces5 million cycles
- Sealed to IP67
General Specifications:
- Panel thickness : 1.5 mm (.059) min. 10 mm (.393) max.
- Total travel : 4 mm (.160) +/- 0.3 mm
- Mechanical life : 5 million cycles
- Torque : 1 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP67 according to IEC 60529
- Operating temperature : -40 °C to +85 °C
- EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3
Electrical Specifications:
- Supply voltage : - 4.5 VDC to 5.5 VDC without regulator - 6.5 VDC to 24 VDC with 5 V regulator
- Supply current : 9 mA max.
- Max. output current : 1.25 mA
Materials:
- Case : PA46, UL94-V0
- Actuator : polyamide 6/6
- Bushing : polyamide 6/6
- Multi-wire leads : AWG26, 150 mm
