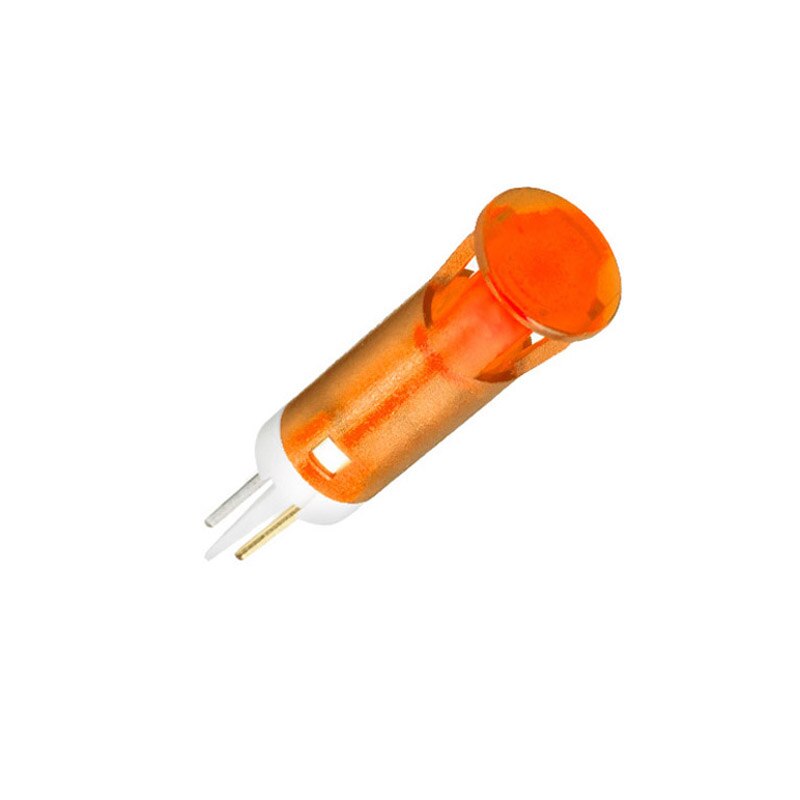

QS121XXHO110
Introducing the QS121XXHO110 LED Indicator, a versatile and reliable solution for all your illumination needs. With a mounting hole diameter of 12mm, installation is a breeze. The solder lug faston terminals ensure a secure connection, giving you peace of mind. This LED indicator features a fixed light type of illumination, providing consistent and steady brightness. The hyper bright orange LED color adds a vibrant touch to your displays. Operating at a voltage of 110 VAC, this indicator is suitable for a wide range of applications. Upgrade your lighting systems with the QS121XXHO110 LED Indicator today!
Key Features
- Mounting Hole: 12 mm
- LED Color: Hyper Bright Orange
- Voltage: 110V AC
- Terminals: Solder Lug Faston
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 6 mm, 8 mm, 10 mm and 12 mm Ø cut-out sizes
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LEDfor daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
