Q8F3BXXR220E

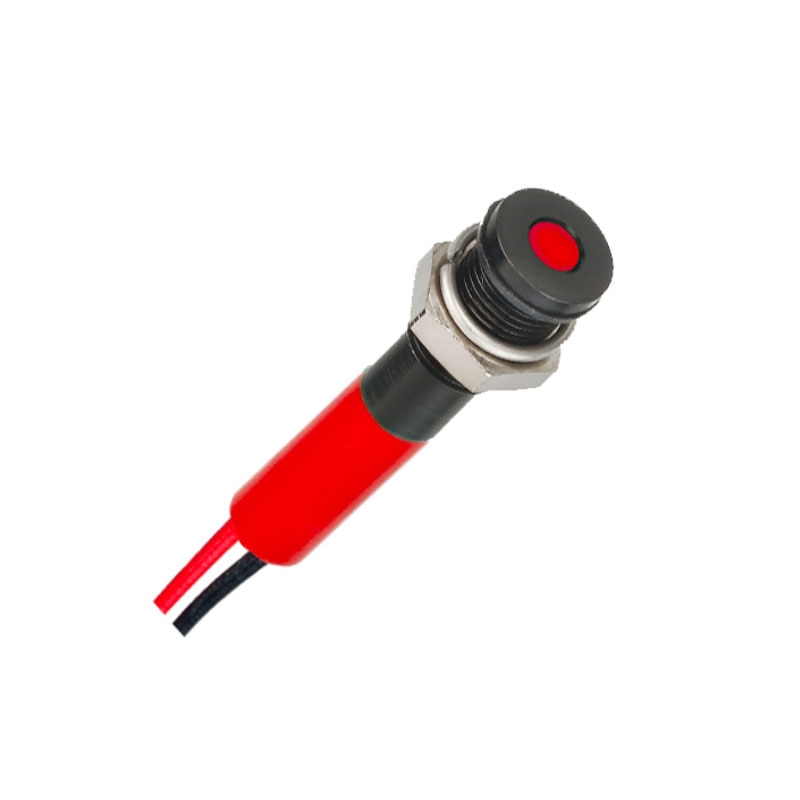

The Q8F3BXXR220E LED Indicator is designed to provide clear and reliable illumination in various applications. With an 8mm mounting hole, it can easily be installed in panels or control boards. The flush bezel style gives it a sleek and modern look. The indicator features wire terminals for easy connection. Its black bezel finish adds a touch of sophistication to any design. The fixed red light illumination ensures visibility and attention. With a voltage rating of 220 VAC, it is suitable for use in a wide range of electrical systems. The IP67 sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.

Key Features
- Mounting Hole: 8 mm
- LED Color: Red
- Voltage: 220V AC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
