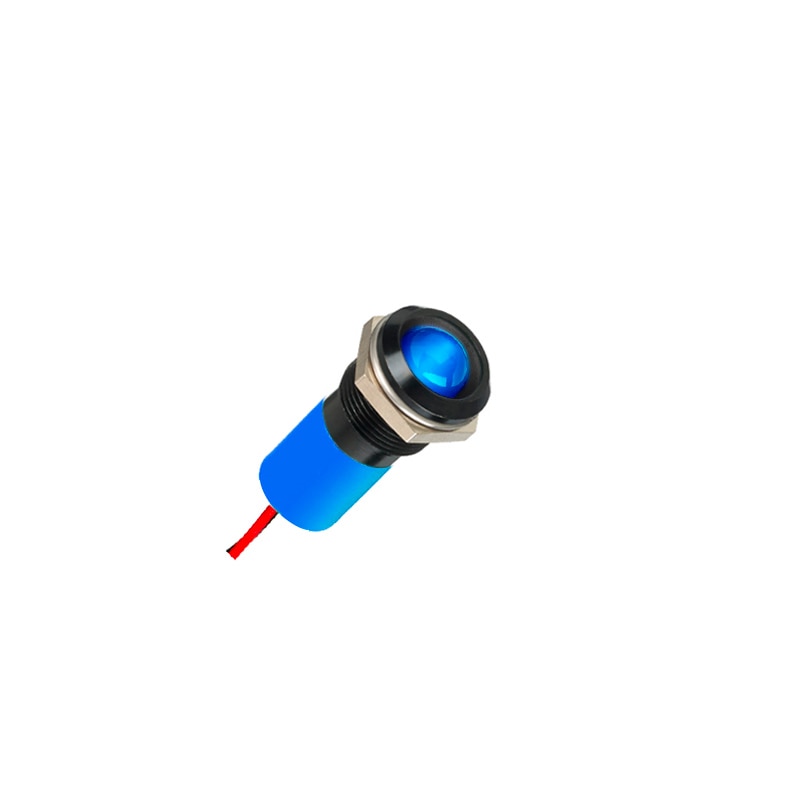

Q12P5BXXSB02E
Introducing the Q12P5BXXSB02E LED Indicator, a versatile and reliable lighting solution for various applications. With a mounting hole diameter of 12 mm, it can be easily installed in any compatible equipment. The prominent bezel style adds a sleek and modern touch to your design. Featuring rear epoxy wires as terminals, the Q12P5BXXSB02E ensures secure and efficient connections. The black bezel finish gives it a sophisticated and professional look. With fixed light illumination, this LED indicator provides a steady and reliable source of light. The super bright blue LED color adds a vibrant and eye-catching element to your device. Operating at a voltage without a resistor, it offers convenience and flexibility in your electrical setup. With an IP67 rating, the Q12P5BXXSB02E is sealed to withstand dust and moisture, ensuring durability and longevity.
Key Features
- Voltage: no resistor
- Type Of Illumination: Fixed Light
- Mounting Hole: Ø12 mm
- Terminals: Rear epoxy Wires
- Led Color: Super Bright Blue
- Bezel Style: Prominent
- Series: Q
- Sealing: IP67
- Bezel Finish: Black
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs2VDC - 220VAC(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
