XDGTT2MNNCYYMAN

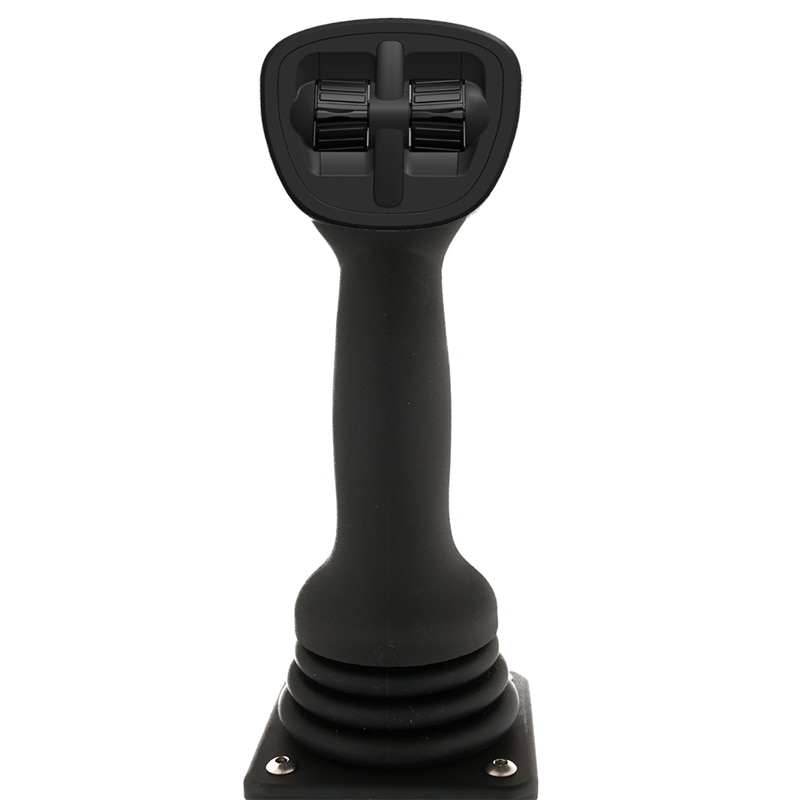

The XD Series joystick is a multi-axis Hand Grip controller specifically engineered for demanding vehicle applications.
Key Features
- Operator Presence Paddle: Yes
- Handle: GT
- Centering: Spring centering
- Index Trigger: Yes
- Operation: Two axis ¹
- Mechanical: None ²
- Series: XD
- Operating Force: 1.24Nm
Specifications
Distinctive Features:
- SIL 2 compatible - Redundant Hall sensors
- Resists high axial load (1780 N - 400 lbf)
- Shallow mounting depth of <60 mm (2.36)
- Rated for 10 million lifecycles
- SAE CAN bus J1939-71
General Specifications:
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Above Panel Sealing: Up to IP67/IP69K (subject to handle configuration)
- Humidity: IEC 60068-2-38
- Thermal shock: SAE J1455 section 4.1.3.2
- Salt spray: IEC 60068-2-11
Environmental Specifications:
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Above Panel Sealing: Up to IP67 (subject to handle configuration)
- Humidity: IEC 60068-2-38
- Thermal shock: SAE J1455 section 4.1.3.2
- Salt spray: IEC 60068-2-11
- Random vibration: IEC 60068-2-64
- Sinusoidal vibration: IEC 60068-2-6
- EMC Emissions:
- Radiated Emissions Level: ECE/324/Add.9:2012 CISPR 25:2002
- Radiated Emissions Level: CISPR 25:2008
- EMC Immunity:
- ESD: ISC 10605:2008 criteria A
- Radiated immunity: ISO 11452-2:2004 criteria B
- Bulk current injection immunity: ISO 11452-4:201 criteria A
- Pulse 1, Pulse 2a, Pulse 2b, Pulse 3a, Pulse 3b, Pulse 4, Pulse 5a:
- ISO 7637-2:2011 criteria A
Electrical Specifications:
- Technology: Redundant Hall effect sensor
- Supply voltage range: 6 - 35 VDC
- Typical current consumption: 12 V @ 53 mA
- Transient overvoltage max: 40 V
- Reverse polarity Max: -1000 VDC
- Output signal: SAE CANbus J1939-71
- Connections: Deutsch DTM04-6p
Materials:
- Shaft: Stainless steel
- Boot: Silicone
- Handles: Glass filled nylon
- Bezel: Hard black anodized aluminum
- Body: Aluminum
- Cover: Zinc plated steel
- Weight: 800 g
Mechanical Specifications:
- Operation: Two axis
- Deflection angle: ±20° in X and Y directions
- Maximum axial load: 400 lbf.
- Expected life: 10 million lifecycles (X and Y axis)
- Lever Action (centering): Spring return
