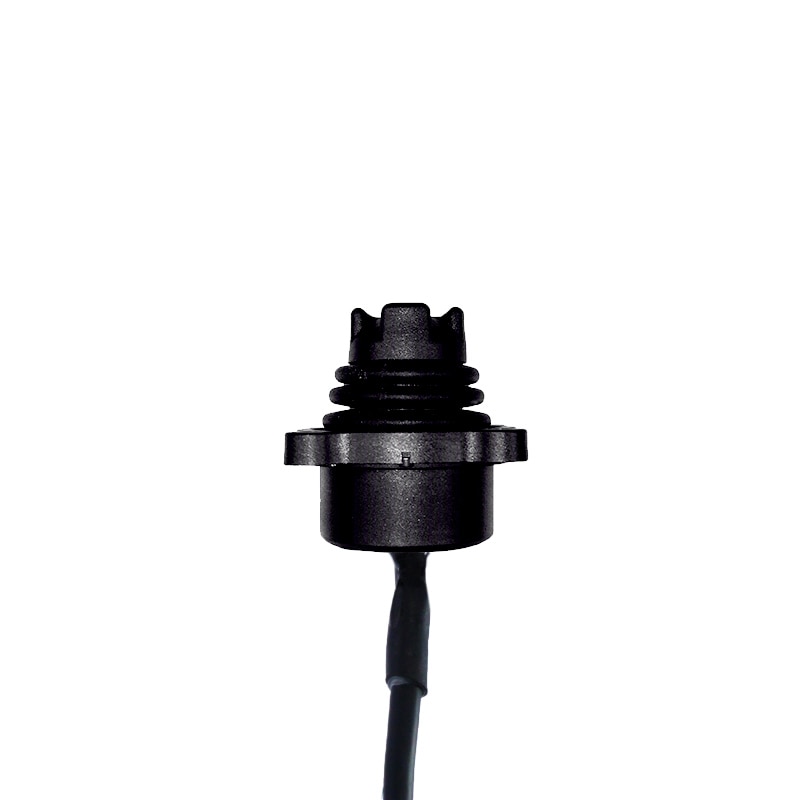

TS1A3P14A
The TS Series Thumbstick is a proportional two axis joystick in a miniature package.
Key Features
- Series: TS
- Limiter: Plus
- Termination: 72” Overmold Cable with USB Male Type Connector
- Handle: Castle
- Output Options: USB (Game Controller)
- Mounting Options: Drop-in and Rear Mount
- Power Supply Options: Single
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
Materials:
- Body: Glass filled nylon
- Metal Threaded Body: Black oxide plated brass
- Boot: Silicone
- Handles: 1, 2, 3, E, F, G - Glass filled nylon 4, 5, 6, 7, 8 - Silicone B, C, D - Thermoplastic elastomer H - Polycarbonate
Mechanical Specifications:
- Operating Force: 3.1N±0.5N (0.70lbf±0.11lbf)1
- Maximum Vertical Load: 200N (45lbf)1
- Maximum Horizontal Load: 150N (33.7lbf)1
- Mechanical Angle of Movement: 50°
- Expected Life: 1 million cycles
- Mass/weight: 18.25g ± 5.0g (0.64oz±0.18oz)
- Lever Action (Centering): Spring centering
