JC

The JC series is a compact finger operated Hall effect joystick ideal for keyboard integration. Measuring at just 26mm below panel, the JC series is the perfect solution where space is limited and precision control is required. With over a dozen handle options, the JC series may be configured with up to three axis and two pushbuttons and features a precision spring centering mechanism that provides an optimal return-to-center voltage of 80mV.

Main features

  • Compact: ideal for keyboard integration
  • Shallow mounting
  • Low profile handle options
  • Pushbutton handle option
  • One, two or three axis
  • Non-contacting Hall effect technology

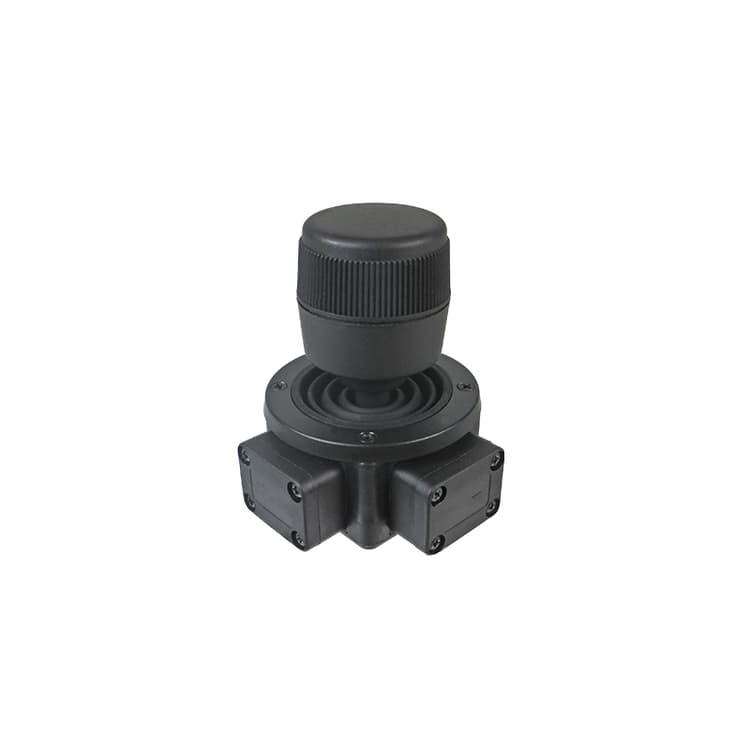

Product detail
Product detail

Key Features

• Breakout torque: .80lbf. in • Operating torque: 1.07lbf.in • Maximum torque: 22.13lbf.in • Mechanical rotation: ± 45° • Handle action: Spring return to center • Expected life time: 1M hours powered ON
92 Products
Filters
  1. image placeholder
    JC
    JC21L0G0
    • Model: 2-Axis with Pushbutton
    • Handle: Pushbutton
    • Centering: Spring Centering
  2. image placeholder
    JC
    JC11L000
    • Model: 2-Axis
    • Handle: Tapered
    • Centering: Spring Centering
  3. image placeholder
    JC
    JC11C030
    • Model: 2-Axis
    • Handle: Concave Tip Long
    • Centering: Spring Centering
  4. image placeholder
    JC
    JC41X0L1
    • Model: 3-Axis with Pushbuttons
    • Handle: 3-Axis and 2 Pushbuttons
    • Centering: Spring Centering
  5. image placeholder
    JC
    JC41X0J3
    • Model: 3-Axis with Pushbuttons
    • Handle: 3-Axis and 1 Pushbutton
    • Centering: Spring Centering
  6. image placeholder
    JC
    JC21X0H0
    • Model: 2-Axis with Pushbutton
    • Handle: Pushbutton
    • Centering: Spring Centering
  7. image placeholder
    JC
    JC21L0H2
    • Model: 2-Axis with Pushbutton
    • Handle: Pushbutton
    • Centering: Spring Centering
  8. image placeholder
    JC
    JC21C054
    • Model: 2-Axis with Pushbutton
    • Handle: Pushbutton
    • Centering: Spring Centering
  9. image placeholder
    JC
    JC11L033
    • Model: 2-Axis
    • Handle: Concave Tip Long
    • Centering: Spring Centering
  10. image placeholder
    JC
    JC11C033
    • Model: 2-Axis
    • Handle: Concave Tip Long
    • Centering: Spring Centering
  11. image placeholder
    JC
    JC41X0J1
    • Model: 3-Axis with Pushbuttons
    • Handle: 3-Axis and 1 Pushbutton
    • Centering: Spring Centering
  12. image placeholder
    JC
    JC41L0J1
    • Model: 3-Axis with Pushbuttons
    • Handle: 3-Axis and 1 Pushbutton
    • Centering: Spring Centering

Showing 1~ 12 of 92 Products

...
