XDGTT2LNNCNNAAN

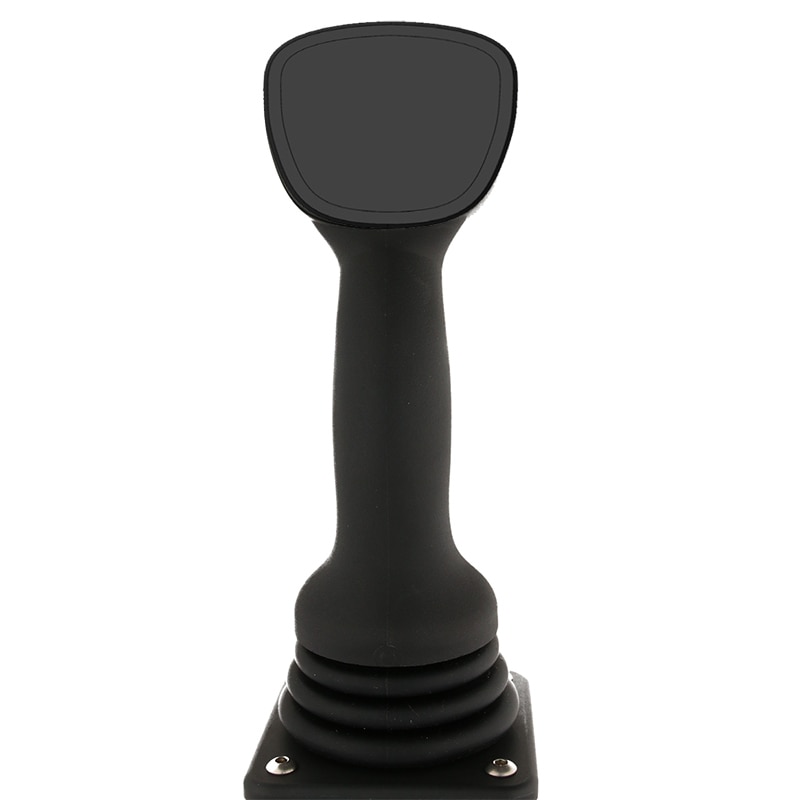

The XD Series joystick is a multi-axis Hand Grip controller specifically engineered for demanding vehicle applications.
Featuring non-contacting Hall effect technology to provide up to 10 million operations, the XD series is a compact yet highly reliable joystick ideally suited for off-highway vehicles and machinery. The XD series measures just 60 mm below panel, yet withstands horizontal loads up to 400 lbf. utilizing an all metal construction. The XD handle utilizes a uni-body construction with modular inserts to provide design flexibility. Inserts include an index trigger switch, operator presence paddle and customizable faceplate and enables IP67 above panel environmental sealing against the ingress of dust and liquids.
View the video :
Main features
- SIL 2 compatible - Redundant Hall sensors
- Resists high axial load (1780 N - 400 lbf)
- Shallow mounting depth of <60 mm (2.36)
- Rated for 10 million lifecycles
- SAE CAN bus J1939-71
Key Features
- Handle: GT
- Series: XD
- Centering: Spring centering
- Operation: Two axis ¹
- Mechanical: None ²
- Index Trigger: No
- Operating Force: .8Nm
- Operator Presence Paddle: No
Specifications
Distinctive Features:
- SIL 2 compatible - Redundant Hall sensors
- Resists high axial load (1780 N - 400 lbf)
- Shallow mounting depth of <60 mm (2.36)
- Rated for 10 million lifecycles
- SAE CAN bus J1939-71
General Specifications:
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Above Panel Sealing: Up to IP67/IP69K (subject to handle configuration)
- Humidity: IEC 60068-2-38
- Thermal shock: SAE J1455 section 4.1.3.2
- Salt spray: IEC 60068-2-11
Environmental Specifications:
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Above Panel Sealing: Up to IP67 (subject to handle configuration)
- Humidity: IEC 60068-2-38
- Thermal shock: SAE J1455 section 4.1.3.2
- Salt spray: IEC 60068-2-11
- Random vibration: IEC 60068-2-64
- Sinusoidal vibration: IEC 60068-2-6
- EMC Emissions:
- Radiated Emissions Level: ECE/324/Add.9:2012 CISPR 25:2002
- Radiated Emissions Level: CISPR 25:2008
- EMC Immunity:
- ESD: ISC 10605:2008 criteria A
- Radiated immunity: ISO 11452-2:2004 criteria B
- Bulk current injection immunity: ISO 11452-4:201 criteria A
- Pulse 1, Pulse 2a, Pulse 2b, Pulse 3a, Pulse 3b, Pulse 4, Pulse 5a:
- ISO 7637-2:2011 criteria A
Electrical Specifications:
- Technology: Redundant Hall effect sensor
- Supply voltage range: 6 - 35 VDC
- Typical current consumption: 12 V @ 53 mA
- Transient overvoltage max: 40 V
- Reverse polarity Max: -1000 VDC
- Output signal: SAE CANbus J1939-71
- Connections: Deutsch DTM04-6p
Materials:
- Shaft: Stainless steel
- Boot: Silicone
- Handles: Glass filled nylon
- Bezel: Hard black anodized aluminum
- Body: Aluminum
- Cover: Zinc plated steel
- Weight: 800 g
Mechanical Specifications:
- Operation: Two axis
- Deflection angle: ±20° in X and Y directions
- Maximum axial load: 400 lbf.
- Expected life: 10 million lifecycles (X and Y axis)
- Lever Action (centering): Spring return
