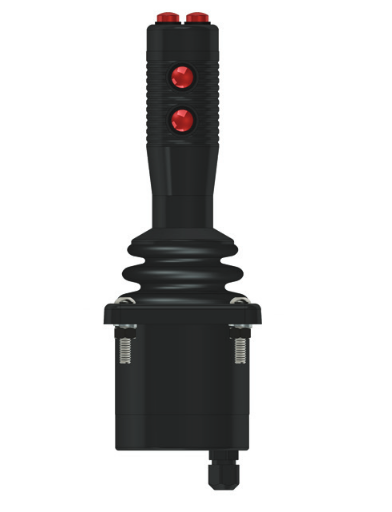

The HJ Series joystick is a hand operated Hall effect controller designed for in-cab vehicle applications requiring proportional multi-axis positioning control.
Specifications
Distinctive Features:
- Rugged multi-axis control
- CAN bus J1939-71 & CANopen outputs
- USB protocol options
- Several handle options5 million lifecycles
General Specifications:
- Rugged, hand operation
- Hall effect sensing
- 5 million life cycles
- Redundant output available
- CAN bus J1939-71, CAN open and USB outputs options
- Several handle options
Environmental Specifications:
- Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Above panel sealing: Up to IP63* (subject to final specifications)
- EMC Immunity Level (V/M): IEC 61000-4-8:2009
- EMC Emissions Level: IEC 61000-4-3:2006
- ESD: IEC 61000-4-2:2008*Most handles
Electrical Specifications:
- Sensor: Hall effect, single or dual
- Supply Voltage Range: 5.00VDC ±0.01VDC
- Supply Current: 15mA, +10mA per axis
- Ratiometric output voltage: See options
- Reverse Polarity Max: -10VDC
- Transient overvoltage max: 16VDC
- Minimum load: 1KΩ
- Return to Center Voltage: ±200mV (no load)
Materials:
- Shaft: Stainless steel
- Body & Handles: Glass filled nylon
- Boot: Silicone
Mechanical Specifications:
- Mechanical Life: 5 million cycles
- Environmental Seal: (front panel) up to IP63
- Operating Force: 14.0N (3.10lbf)
- Maximum Vertical Impact: 34.5J
- Maximum Horizontal Load: 200lbf. at 8 inches above panel
- Deflection Angle: 38º (±19º from center)
- Mass/weight: 544.3g (19.2oz) typical
- Lever Action (centering): Spring, omnidirectional
