Q12F1BXXHR12E

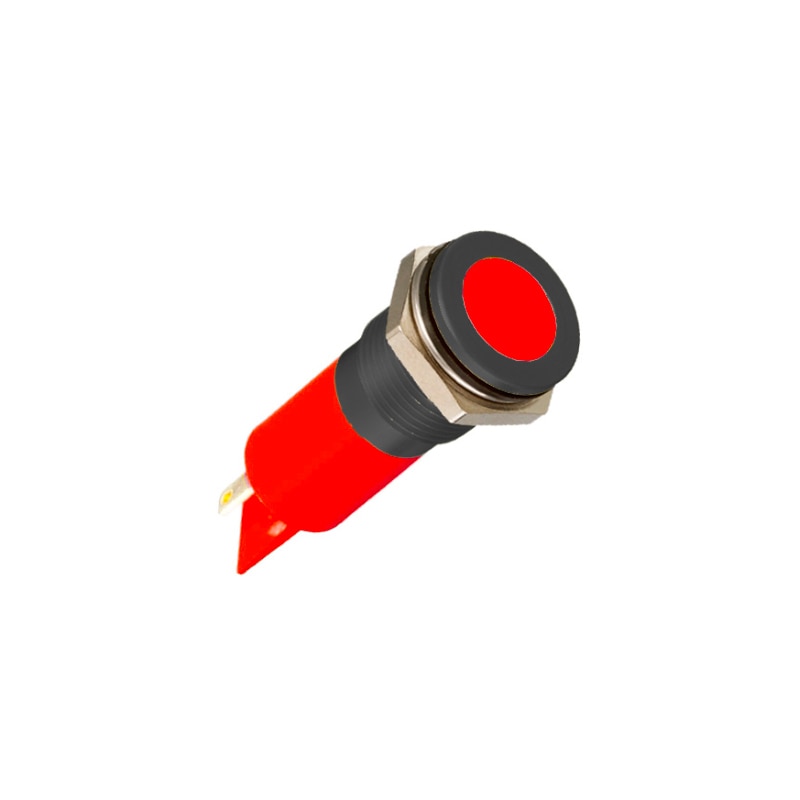

The Q12F1BXXHR12E is an LED indicator with a 12 mm mounting hole. It features a flush bezel style and has solder lug fastons28 x 08 terminals. The bezel finish is black and it provides fixed red light illumination. It operates at a voltage of 12 VDC and has a sealing rating of IP67, making it resistant to dust and water. This LED indicator is ideal for applications where a compact and durable indicator is required.
Key Features
- Voltage: 12 VDC
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
- Bezel Finish: Black
- Mounting Hole: Ø12 mm
- Voltage: 12 VDC
- Terminals: Solder Lug/ Fastons(2.8 x 0.8)
- Terminals: Solder Lug Fastons28 x 08
- Type Of Illumination: Fixed Light
- Mounting Hole: 12 mm
- Sealing: IP67
- Led Color: Hyper Bright Red
- Bezel Style: Flush
- Led Colour: Red
- Sealing: IP67
- Bezel Finish: Black
Specifications
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
