TS3P1G02A

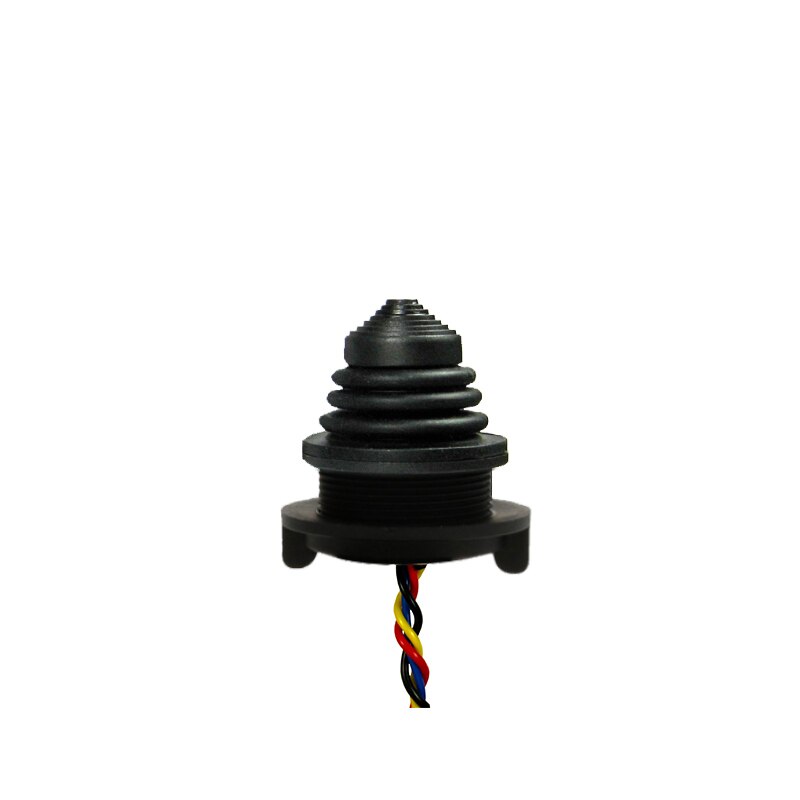

The TS3P1G02A Joystick, also known as the Conical, is designed for precise control and comfortable handling. Its ergonomic handle, or Poignée in French and Handgriff in German, allows for easy maneuvering and dexterity. The joystick features a threaded housing made of durable plastic, ensuring secure and stable mounting, or Montage in French and Montageart in German. The TS3P1G02A's guided feel, or Limiter in French and Limiter in German, provides a smooth and controlled movement, allowing users to navigate with precision. The joystick's output voltage ranges from 05 V to 45 V, offering flexibility and compatibility with various systems and applications. Additionally, the TS3P1G02A Joystick comes with LED control, enabling users to customize the LED color, or Couleur LED in French and LED-Farbe in German, for enhanced visual feedback and aesthetics.
Key Features
- Series: TS
- Limiter: Guided feel
- Termination: 22 AWG 25 cm PTFE 2-1
- Handle: Conical
- Output Options: 0.5 V to 4.5 V
- Mounting Options: Threaded housing, Plastic
- Power Supply Options: Single
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
