Q16P1BXXY24E

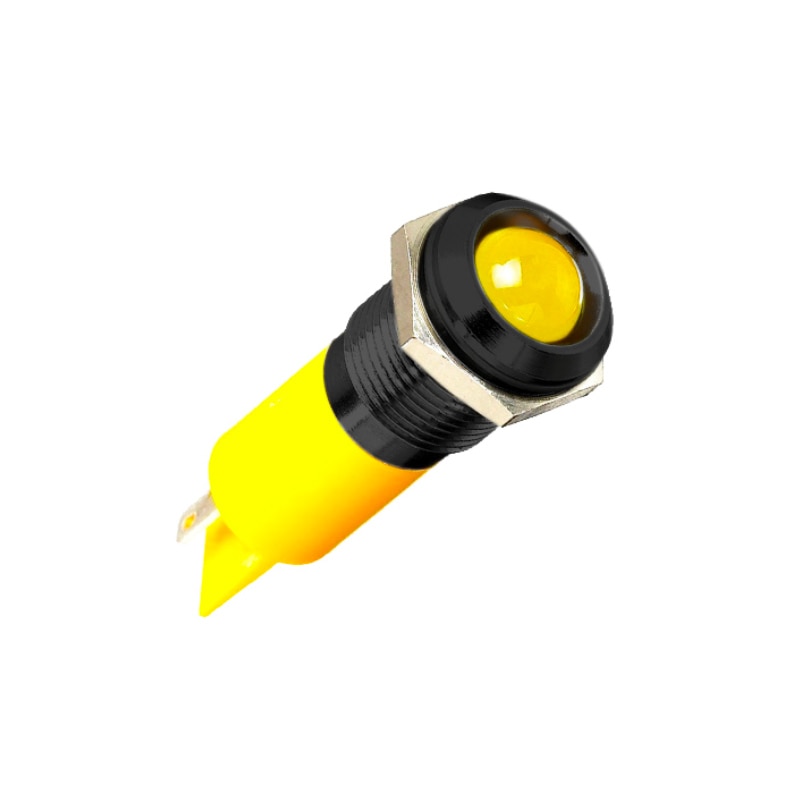

The Q16P1BXXY24E LED Indicator is a versatile and high-quality component designed to provide clear and reliable visual indication in various applications. With its 16mm mounting hole, it can easily be installed in different equipment and panels. The prominent bezel style adds a sleek and modern touch to any design. The solder lug fastons terminals ensure secure and stable connections. Its black bezel finish adds a touch of elegance. The fixed yellow light illumination offers a vibrant and eye-catching display. With a voltage of 24 VDC, it provides efficient and consistent performance. Additionally, its IP67 sealing ensures protection against moisture and dust, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 16 mm
- Led Colour: Yellow
- Voltage: 24V DC
- Sealing: IP67
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- Secret until lit polycarbonate decals or custom engraving
- 10 mm colored diffused epoxy lens or 10 mm water clear
- super bright LEDs
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C *
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
