Q12F5BXXHO12E

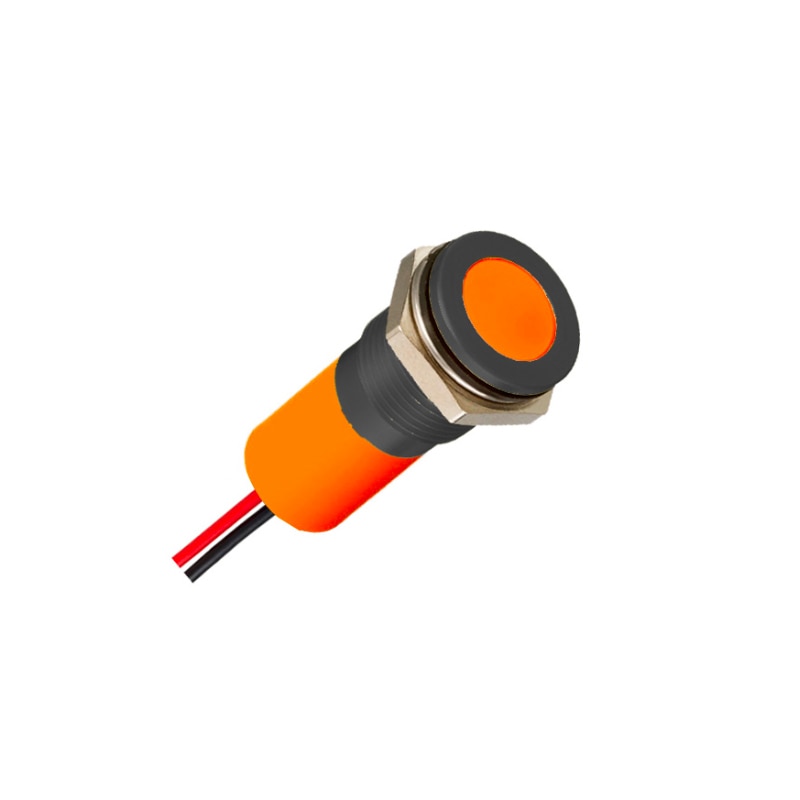

The Q12F5BXXHO12E is an LED indicator with a 12 mm mounting hole. It features a flush bezel style and black bezel finish. The terminals are rear epoxy wires, and the type of illumination is fixed light. The LED color is orange, and the voltage is 12 VDC. It has a sealing rating of IP67, making it highly resistant to dust and water. This LED indicator is ideal for applications that require reliable and visible indication.
Key Features
- Voltage: 12 VDC
- Type Of Illumination: Fixed Light
- Mounting Hole: Ø12 mm
- Terminals: Rear epoxy Wires
- Led Color: Hyper Bright Orange
- Bezel Style: Flush
- Sealing: IP67
- Bezel Finish: Black
Specifications
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
