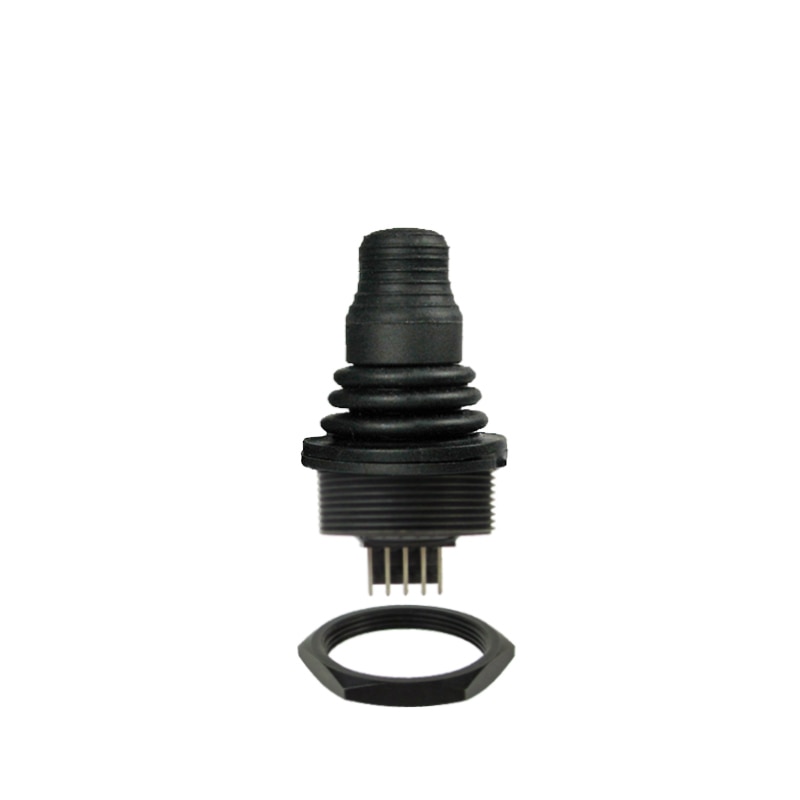

TS4T5P09A
The TS4T5P09A Joystick is a versatile and reliable control device that ensures precise and intuitive operation. Its ergonomic design provides a comfortable grip, allowing for extended use without fatigue. The threaded housing metal allows for easy mounting, ensuring stability and durability. With the limiter feature, you can set specific boundaries to prevent excessive movement. The joystick offers two output options, providing flexibility for different applications. The LED control feature allows for easy identification and monitoring, while the LED color option adds a touch of customization. Whether you are controlling machinery or gaming, the TS4T5P09A Joystick is the perfect choice.
Key Features
- Series: TS
- Limiter: Plus
- Termination: 2.54 mm (0.100”)Pitch TE Connector with 10” Mating Harness
- Handle: Finger Tip
- Output Options: 0.5 V to 4.5 V - Sensor 1 4.5 V to 0.5 V - Sensor 2
- Mounting Options: Threaded housing, Metal
- Power Supply Options: Single
Specifications
Distinctive Features:
- One or two axis
- Analog, PWM or USB outputs
- IP67 Above panel sealing mounting
- Rear or drop-in mounting
- Pushbutton option
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
